Super
Lauwersmeer SLX 54s

ENGINE AND POWER TRAIN
Twin Volvo Penta D4 175 HP – 2 times Water-lubricated balanced propeller shaft of high quality – Aqudrive antivibration propeller shaft system ensures this reduces noise and vibration by 50%. – High-quality, water-lubricated balanced and bearing agitator systems – Aquadrive propeller shaft coupling – Where the aquadrive thrust bearing absorbs thrust – Speed range: +/- 10 knots
* Option: 2 x 440 HP speed range+/-15 Knots *
* Option: Proportional bow- stern thruster 210 Kgf *
* Option: Wireless remote control for operating: engines, bow thruster, stern thruster and anchor winch

DECK EQUIPMENT
Flexiteek on the BeachDeck steps to the SunDeck and on the SunDeck – Electric anchor winch with control from foredeck and safety switch – Anchor tilting mechanism – Slide out Anchor 30kg type anchor – Maxclaw with 30m of 13mm galvanised anchor chain with 1 metre of braided rope – Fenders (6 pieces) and lines (4 pieces) – Deck wash (freshwater) with connections to BeachDeck – Stainless steel X cleats on foredeck, midship and Beach Deck (total 10 pieces) –  Stainless steel railing around the ship – Stainless steel stairs with handrailing to stairs to Sun Deck – Recessed steps, Port and Starboard in the bulwark – Electric horn – Diesel and water filling and vw extraction
* Option: Flexiteek on the entire ship
* Option: Fender and lines storage recessed in side deck on Starboard side

SUNDECK
Steering position with helm seat – Engine instrument panel – Electric engine controls – Steering wheel – Rudder reference sensor – Bow thruster control Raymarine Chart plotter Axiom 12” – Tridata – Starboard lounge sofa – Cooling drawer underneath lounge sofa – A preparation kitchen – Large sunbed – Access to BeachDeck – Windbreak – Stainless steel handrail and railing – T-Top – Flexiteek on the SunDeck
* Option: Solar screen can be opened electrically in the T- Top
* Option: T-Top electric/hydraulic lowering for minimum clearance height
* Option: Outdoor kitchen with hot and cold running water
* Option: SL steering bench instead of helm seat
* Option: Backrest for sunbeds on SunDeck
* Option: Engine data and tank measurement via 12” screen

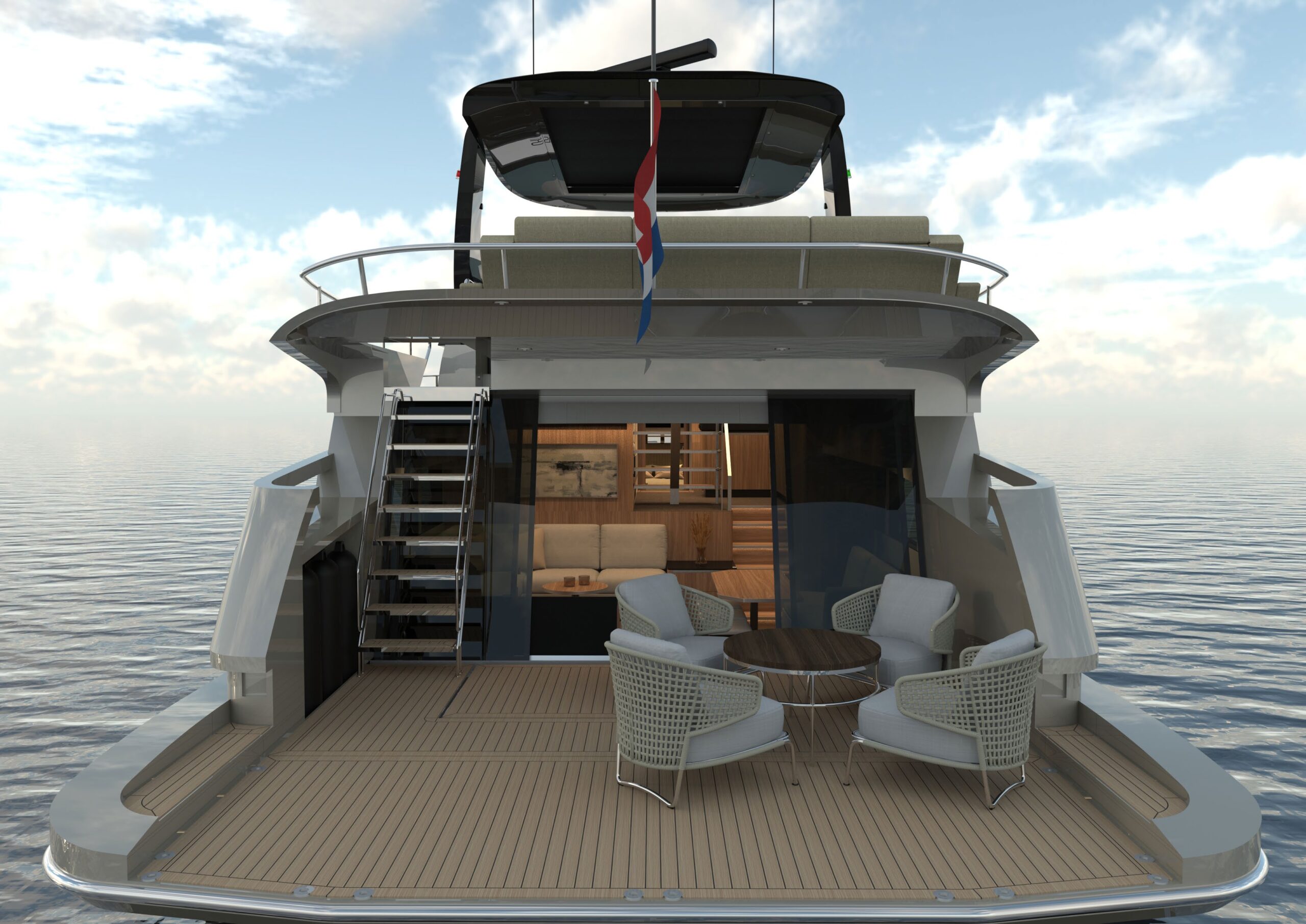

BEACHDECK
4 deck lights above the facade – Fender storage Port side concealed in side cheeks room for 4 fenders – Deck wash connection – Flexiteek on the BeachDeck –  Façade to the BeachLounge – Stairs to the SunDeck – Lockable floor storage
* Option: Mosquito screen for sliding doors
* Option: Retractable awning… * Option: Deck shower with hot and cold water

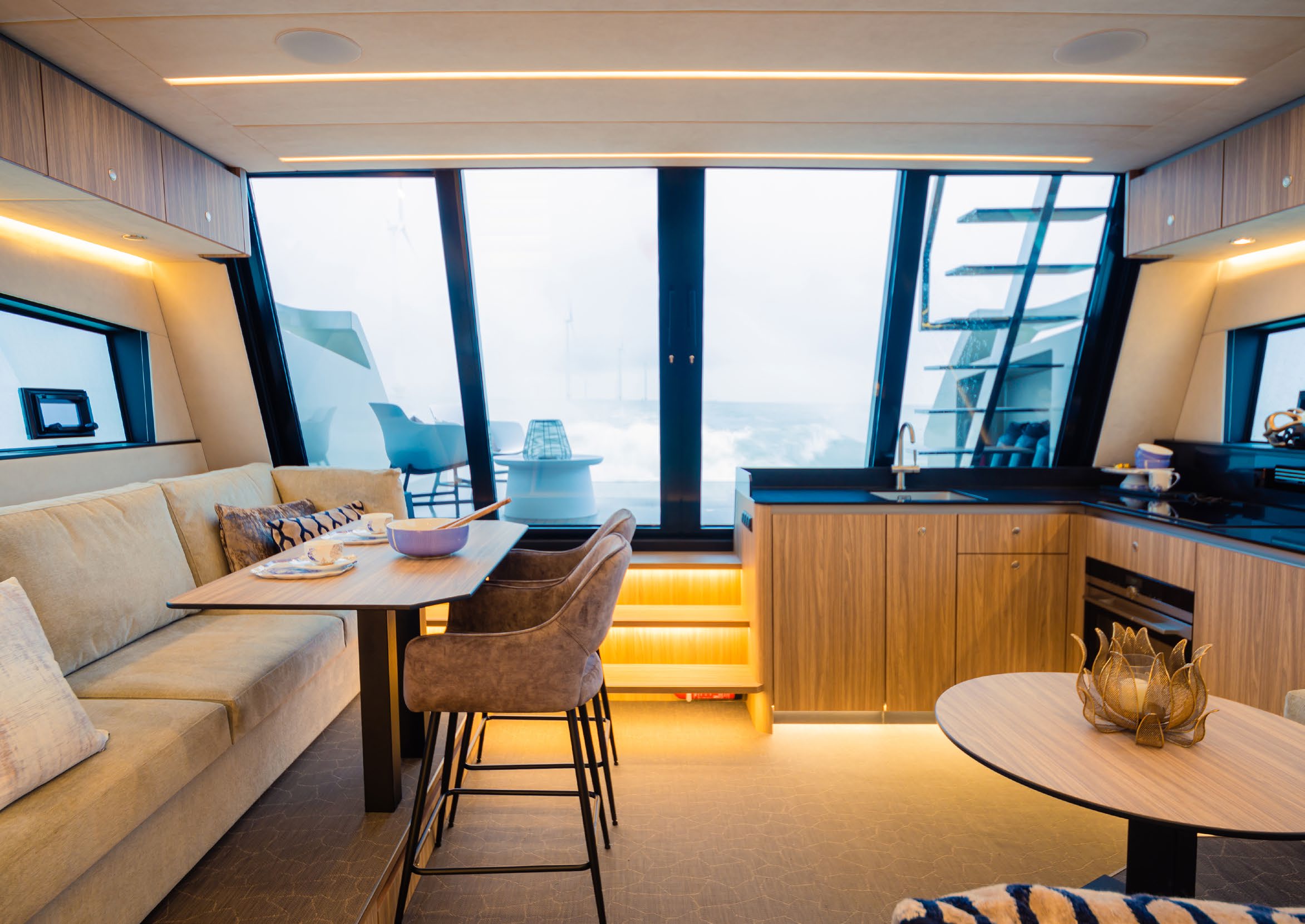

BEACHLOUNGE
Lounge area with coffee table – Luxaflex for the Port and Starboard hull windows – Upholstered ceiling panels with spots – Sliding door to BeachDeck – Dining area with high table, 2 stools and 3-seater sofa with a TV behind it including lift system – PVC floor \
* Option: Wine cooler next to the dining area
* Option: Additional drawer in the lounge seating area
* Option: LED lighting behind the wall units

GALLEY
Getacore worktop – Ceramic 4-burner hob – Combi oven/microwave – Stainless steel sink with mixer tap – Fridge with freezer compartment – Garbage disposal –  Drawers and cupboards for crockery – PVC floor
* Option: Dishwasher
* Option: Cooktop extraction through the wall

WHEELHOUSE
Engine instrument panel (tank gauges in central switchboard) – Steering wheel – Helm seat – Rudder reference sensor – Bow thruster controls – Electronic engine controls – Raymarine Chart plotter Axiom 12” – Tridata – Three windscreen wipers – Bilge pump control in central switchboard – Stainless steel openwork staircase to SunDeck – Very spacious bench with table on a stage for a 360-degree view – Storage space under helm seat
* Option: Additional refrigerator under the helm seat
* Option: Custom-made 2-seater SL steering bench
* Option: Engine data and tank measurement via 12” screen
* Option: Middle front window can be opened electrically

ACCOMMODATION IN THE BOW
All cabins have opening portholes, 230V sockets – All bathrooms are equipped with opening – Portholes, toilets with freshwater flush, connected to holding tank * Option: USB connections

OWNER’S CABIN
Large double bed with storage drawers (2x) – Mirror edge above bed – Wardrobes with storage and hanging space – Upholstered ceiling panels with spotlights –  Panorama window in front of deckhouse – 3 times escape hatch – Floor covering – Bathroom en suite with shower and toilet

* Option: TV
* Option: Indirect lighting around escape hatches

Bathroom owner’s cabin: Bathroom with bathroom cabinet – Designer washbasin with mixer taps – Glass wall with shower door – Toilet Mirror – Storage cabinets – Overhead storage cabinets Getacore floor
* Option: Design panels in the shower area

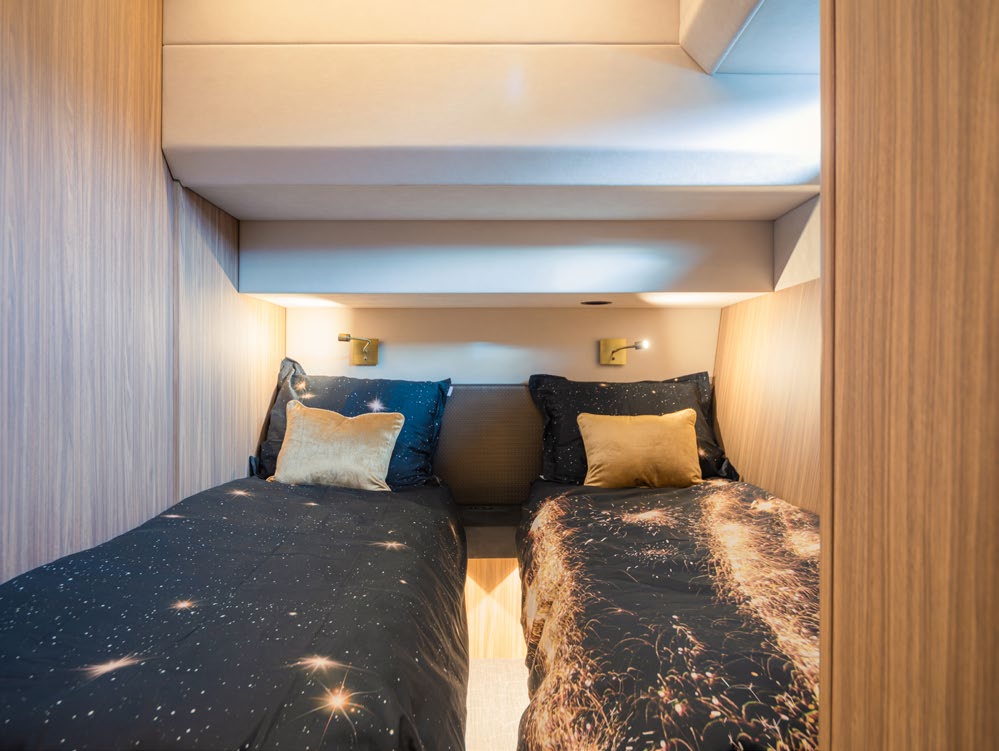

GUEST CABIN
Two single beds  – Wardrobe – Mirror wall sliding door to toilet room – Storage cabinets – Upholstered ceiling panels with spots – Floor covering
* Option: Indirect lighting under the beds

Guest cabin bathroom: Bathroom with bathroom cabinet – Designer washbasin with mixer taps – Storage cabinets – Toilet – Getacore floor
* Option: Shower

INTERIOR AND FINISHING
Furniture finished in Deco panels, tops and fenestration in solid Fenix – Worktop Galley Getacore Bathroom furniture worktops  – Getacore and floors Getacore –  Choice of furniture fabrics, ceiling panels upholstery, carpets and fabric sun beds from the range on

ENGINE AND CONTROL SYSTEMS
High-quality engine room insulation – Engine exhaust damping using water locks with built-in silencer – Flexible engine damping/supports – Automatic fire extinguishing system – Engine room lighting – Double-screw propulsion with four-blade propellers – High-quality, water-lubricated balanced and bearing steering systems – Inside steering position – Outside steering position – Double grip electronic engine control by Volvo – Bow thruster 150 Kgf – Fresh water tap in engine room – Floor fitted with tear plate

DIESEL SYSTEM
Diesel tanks of 2200 litres – Fuel filler cap on Beach Deck – Standard diesel pre-filters – Emergency shut-off valve for – fuel supply Fuel gauge in central switchboard
* Option: Tank measurement via Axiom screen

WATER SYSTEM / HEATING
Water tank 600 litres – Hot water via a diesel-fired central heating boiler Heating system through diesel-fired central heating boiler with Kickspace – Automatic drinking water pump – Water level gauge in central switchboard Deck filler cap
* Option: Tank measurement via Axiom screen
* Option: Water softener
* Option: Underfloor heating

WASTEWATER SYSTEM
Holding tank 350 litres – Electric overboard discharge holding tank with macerator backup system, as well as a quayside discharge system – Waste water level gauge in central switchboard
* Option: Tank measurement via Axiom screen

ELECTRICAL SYSTEM
24 volts: 2 x Optima Yellowtop 75 Ah for bow thruster and anchor winch operation – 2 x 110 Ah for both engines – 1 x 65 Ah for generator – 6 x 220 Ah for 24-volt on-board network – Standard engine alternators 100 Amp 24 Volt – 1 x 15-amp battery charger for bow thruster and 1 x 15- amp battery charger for generator – 1 x 70-amp battery charger for on-board network (combi 24/3000/70) Battery charge switching and control panel – Automatic fuses of 12v – 24v ensure protection

230 volts:
4KW 2200-3000 rpm diesel generator in its own soundproof cabinet with water-cooled and special silent exhaust system – 1 x 16 -amp shore power connection on Beach Deck – Earth leakage switches and fuses throughout the circuit – Double WCD sockets (total 13) throughout the vessel
* Option: Heavier generator (3,4 kw)
* Option: Heavier charger/inverter (24/8000/200 )
* Option: Additional batteries for on-board network (2x)

FIRE-FIGHTING EQUIPMENT
Automatic fire extinguishing system in engine room – Portable fire extinguishers (6) – Separate extinguishing system in the central control cabinet

BILGE PUMPS
Automatic electric bilge pumps (4 times) – Separate manual bilge pump with hose

OTHER STANDARD ACCESSORIES
Fenders (6) and mooring lines (4) – Flagpole with flag – Manual – Miscellaneous manuals – Tool case – Dashboard cover for outside steering position

OPTION PACKAGES

Package navigation:
2x 16”Axiom screen WheelHouse, 2x 12” Axion screen SunDeck, VHF radio, AIS and autopilot – Stern camera and bow camera with special customised made housing, so the view is right in front of the bow

Package LED interior lighting: Illuminated steps BeachLounge (2x) – Illuminated steps WheelHouse (2x) – Plinth lighting Lounge kitchen

Package deck lights: 2x steps gangway (1x Port 1xStarboard), 2x lights on foredeck, 4x lights on SunDeck

Package air conditioning: AC Beachlounge and WheelHouse – AC in the cabins – Central extraction system

Interior design package: Design ceiling with LED strip lighting in BechLounge, WheelHouse, owner’s, and guest cabin – Entire ship is fitted with upholstered Alcantara panels – Partially electric pleating

Package speaker: Additional speakers, controllable via Aquasoud Bluetooth Audio system, in Wheelhouse and SunDeck

Package of covers: Cover set for SunDeck sunbed, outdoor kitchen and helm seat

Seawater package: All through-hull fittings with ball valves made of seawaterresistant brass – Zinc anode instead of aluminium anode – Stainless steel anchor chain – Raised sea railing – Extra handgrips – Facade CE class A – Watermaker – Life raft – Altered Gyro stabilisation – Anchor chain accessible from foredeck

Exterior finishing package: Ship painted in two different hull and superstructure colours – Body in metallic colour – Superstructure in metallic colour – T-Top in a metallic colour

Package stabilisation: Gyro installed in the engine room
