ICE REINFORCEMENTS; (NO CERTIFICATE)
EXTRA OPTIONS
Tender:
Machinery hours:
Counter: Main Engine 1 | Actual value: PS 3472
Counter: Main Engine 2 SB | Actual value: 3425
Counter: Generator PS | Actual value: 9261
Counter: Generator STB | Actual value: 9325
Counter: Stab hydraulic pump 1 | Actual value: 4861
Counter: Stab hydraulic pump 2 | Actual value: 5863
Counter: Stabilizer Hydr Oil pumps | Actual value: 7584
Counter: Stabilizer Raw CW pump | Actual value: 1881
Counter: Air compressor | Actual value: 13011
Counter: Dive Air Compressor | Actual value: 67
Rescue boat
Rescue boat launching appliance
Liferafts port and starboard side:
Navigation communication custom project by Radio Zeeland

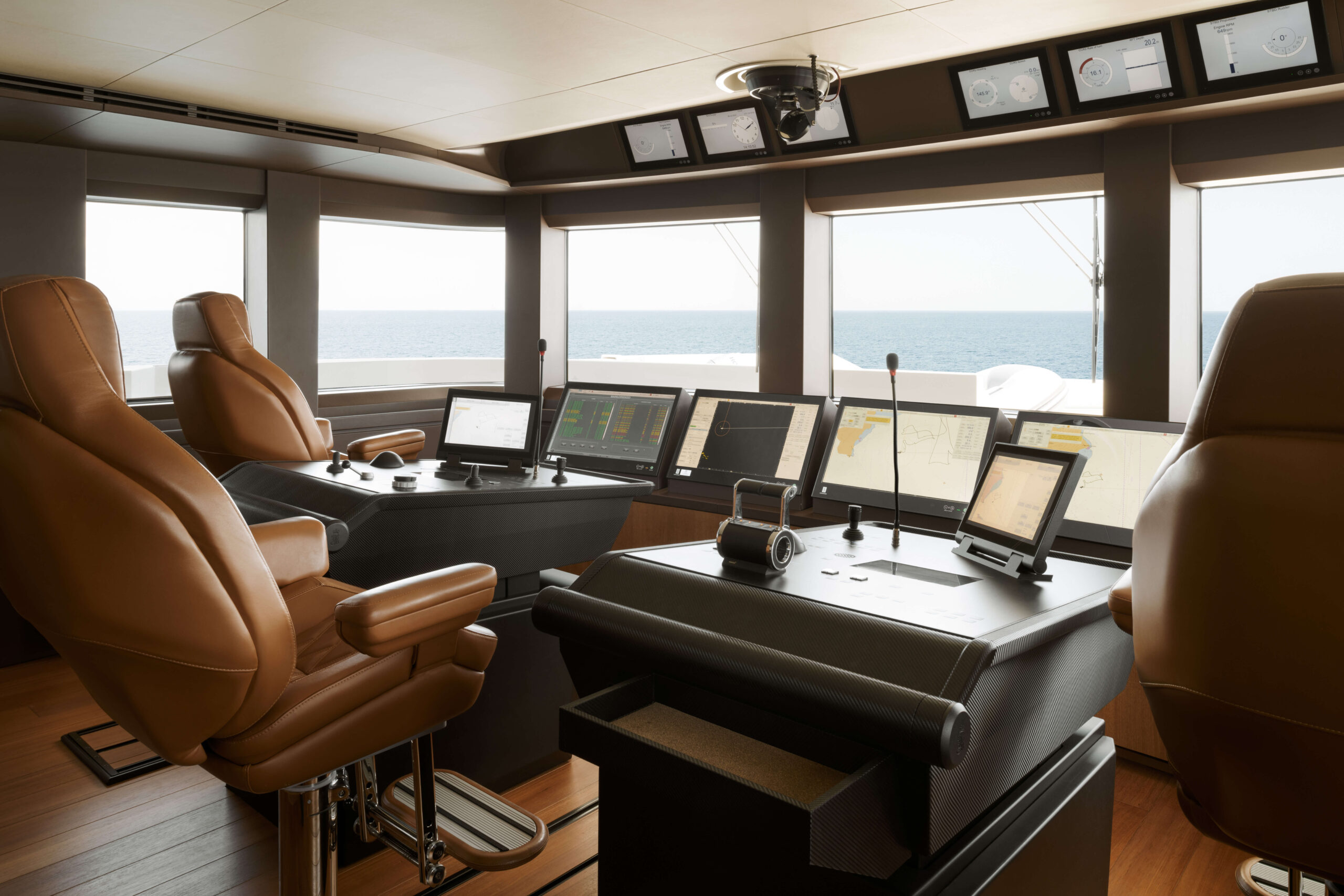

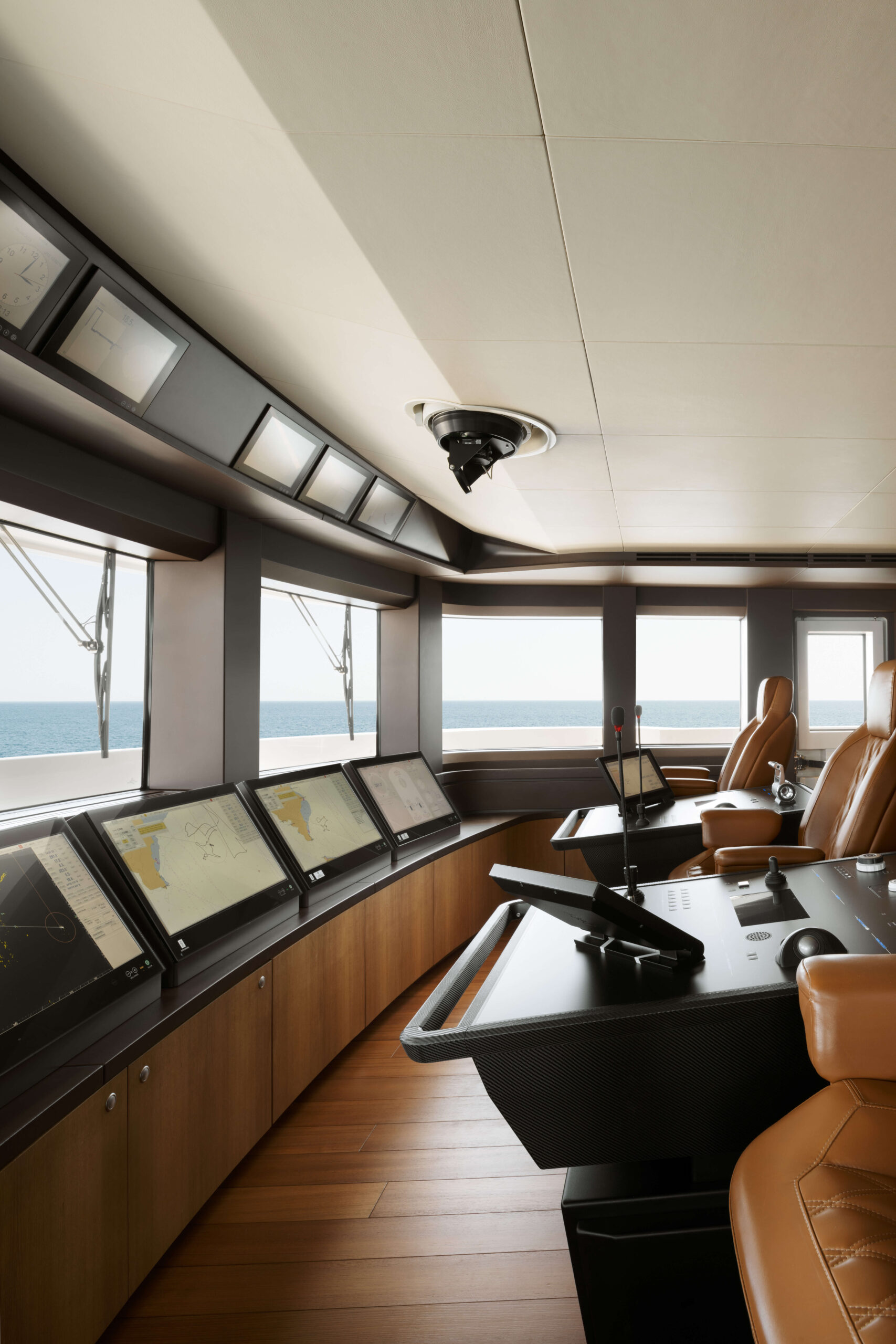

O P E R A T O R S T A T I O N F O R W H E E L H O U S E :
K-Bridge MULTI operator station
• 27” widescreen display
• Trackball (backup)
• Type approved Windows marine computer
– ECDIS display
– RADAR display
– CONNING display
– Streaming of external video input
• Dual process network interface
• Power requirement: 100-240VAC, 300VA
• Panel PC rear mounted on the display; bulkhead mounting by means of VESA mounting bracket.
Multi indicator display (overhead displays)
• 13” widescreen display configurable with one or two indications each. Panel PC
– Heading & ROT
– Three axis speed
– Depth and history
– Wind speed and direction
– RAI x 2
– RPM x 2
– Bow thruster
– Date and time
– Dual process network interface
Touch Control Panel 13.3”
• View selection for MULTI OS
• Multipurpose operation panel for
– K-Bridge ECDIS/Radar
– K-Man DP/AP
– SN90 sonar
– Common palette and dimming functions
– User profile setup and selection
– Auxiliary systems control panel
– Wipers/washers/heaters
– Navigation Lights
– Horn
• One unit to be mounted on each wheelhouse control panel.
Multifunctional heading wheel
• Autopilot mode selection
• Heading, radius and WOP control (AP)
• Heading and position movement (DP)
Three axis joystick
• Longship/athwartship control
• ROT control
• Auto/manual axis control selection
Trackball
• Thee button
• Scrolling wheel
• Right hand use
• One unit to be mounted on each wheelhouse control panel
K-Bridge PLANNING operator station
• For desktop installation
• Without display
• Type approved Windows marine computer
– ECDIS display
– Route planning
– Streaming of external video input
– Power requirement: 100-240VAC, 300VA
43” Touch screen display
• For integration in lounge table
– Note: protective glass cover should be provided. Sufficient cooling inside table should be provided (actual need to be in- vestigated)

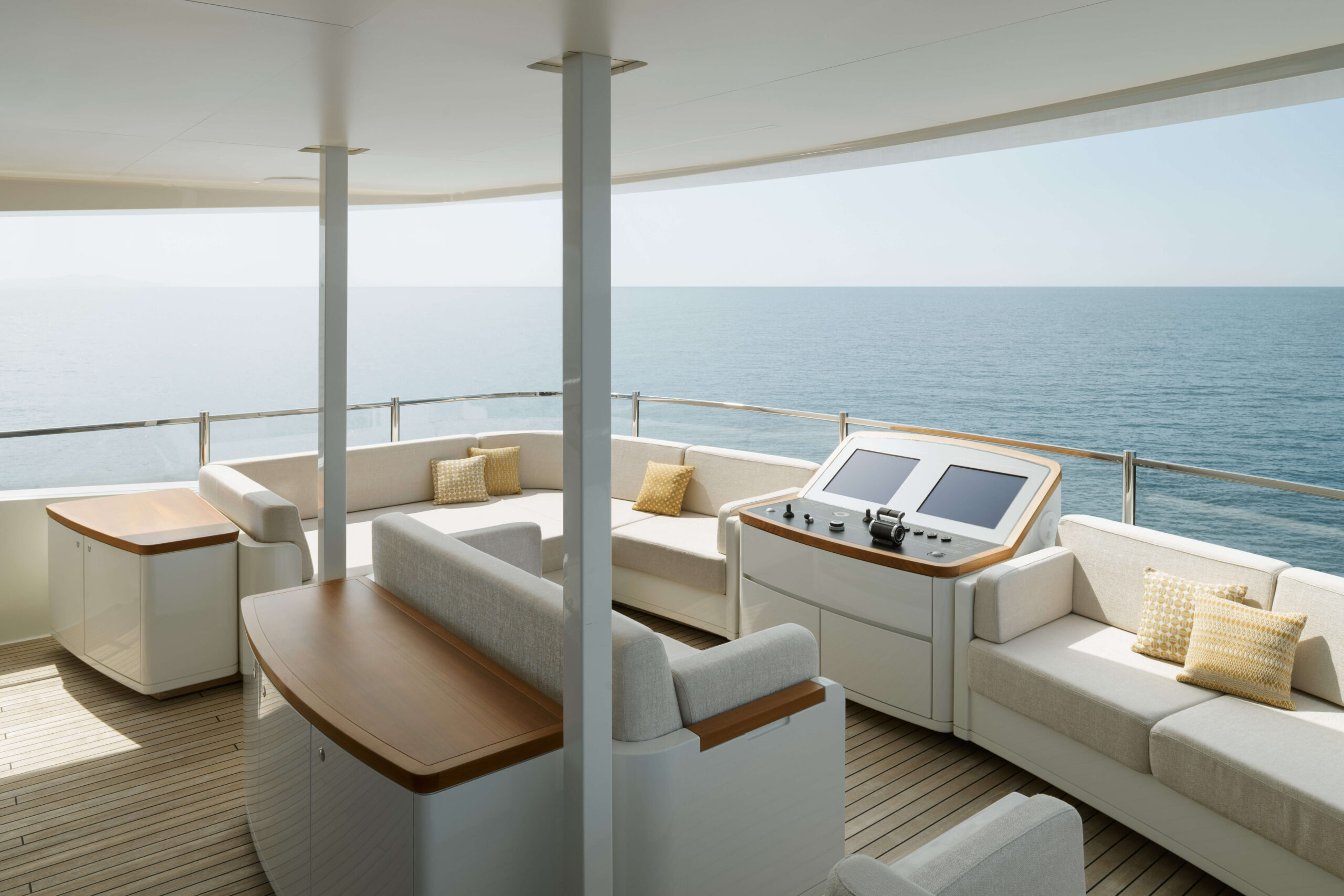

O P E R A T O R S T A T I O N S F O R F L Y B R I D G E
K-Bridge MULTI operator station
• For drop-in installation
• Without display
Type approved Windows marine computer
• ECDIS display
• RADAR display
• Dual process network interface
• Power requirement: 100-240VAC, 300VA
Multifunctional heading wheel
• Autopilot mode selection
– Heading, radius and WOP control (AP)
– Heading and position movement (DP)
Three axis joystick
• Longship/athwartship control
• ROT control
• Auto/manual axis control selection
Note: display and weatherproofing of autopilot and joystick is Radio Zeeland supply. Assembly should be covered when not in use.
O P E R A T O R S T A T I O N S F O R B R I D G E W I N G S
Multi indicator
• Windows panel computer, high brightness
• Programmable instrument matrix
• Dual process network interface
Power requirement: 100-240VAC, 300VA
Note: software only, panel computer by RZ Intel
Pentium processor, running Windows10
Type approved Windows marine computer
• ECDIS display
• RADAR display
• Dual process network interface
• Power requirement: 100-240VAC, 300VA
S Y S T E M S U P P O R T E L E M E N TS :
Bridge network installation kit
• 16 channel network hub / switch
• All network cables for connections within wheel house
• Patch panels for ships cable termination Power: 230VAC, 30VA
K-Bridge dual controller / interface unit
Field interface for navigation sensors common to all K-Bridge systems
Field interface for autopilot/track pilot/DP
Field interface for bridge watch monitoring
Dual redundant processor with automatic master / standby switch
• Sensor data processing and distribution
• Autopilot processing
• Joystick/dynamic positioning processing
• Central bridge alarm system
• Bridge navigational watch alarm system
Dual LAN interface Bulkhead mount cabinet 800x1200x250mm 12 serial interface channels, RS232/422/485 64 configurable AI/AO/DI/DO channels Power requirement:100-240VAC,260VA Dimensions (h/w/d): 1200/300/800mm
Video streaming input device
• DVI or VGA input devices available
• USB mouse output
N A V I G A T I O N S Y S T E M A C C E S S O R I E S
Bridge main Alarm Panel
Note: integration in foil is Radio Zeeland supply
Buzzer in the wheelhouse
Timer reset buttons
Note: integration in foil is Radio Zeeland supply
Alarm buzzers
For public spaces and navigator cabins
S E N S O R S F O R N A V I G A T I O N B R I D G E

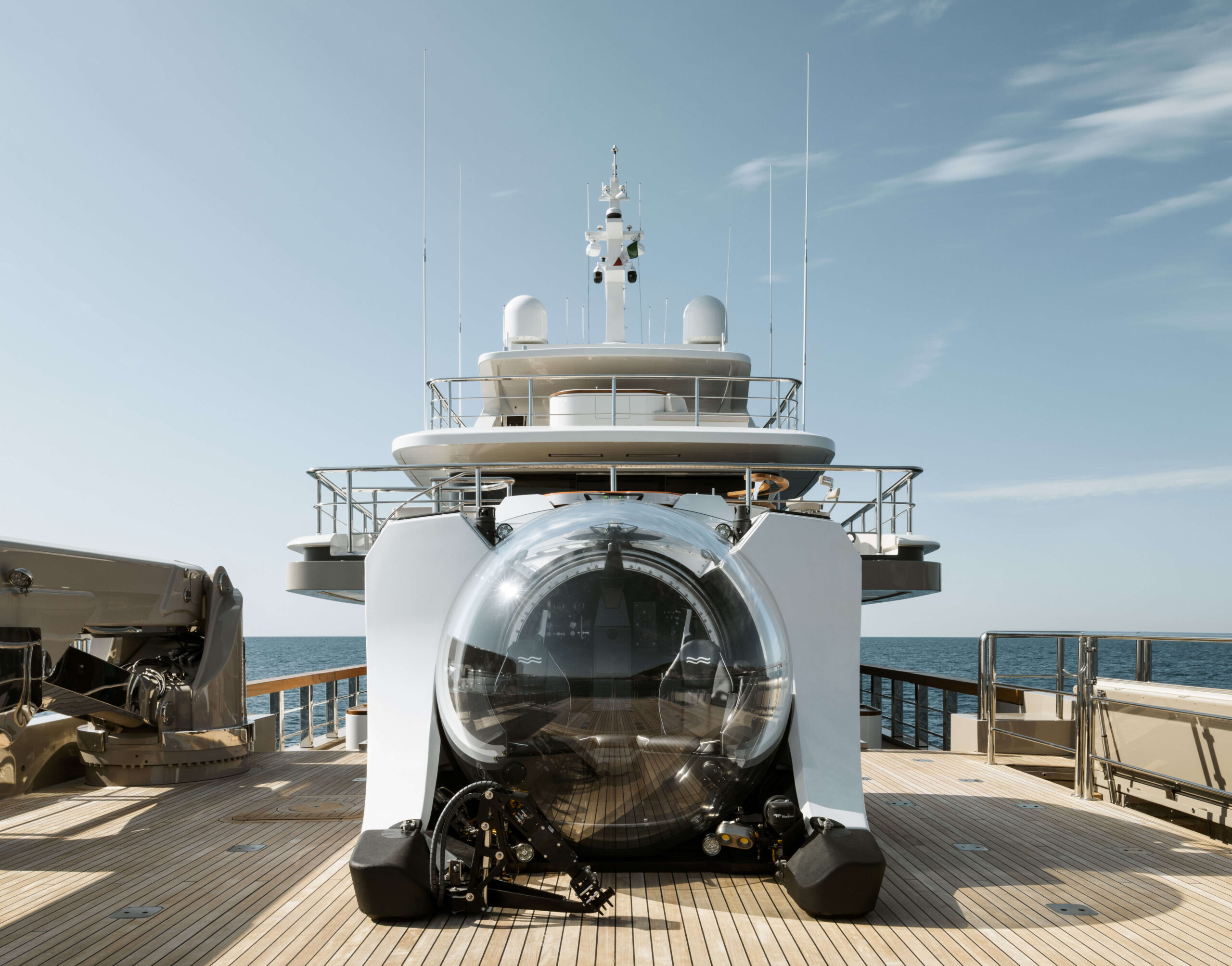

X-band radar, 25 kW, up mast
• Radar scanner
• 2,4m radar antenna
• Turning unit
• Built-in 25kW transceiver
• Performance monitor
Power: 100-240VAC, 250VA
RIN box (Radar Interface to Network)
• Inter-switching functions
• Redundant network
• Copper module
Cable kit
• From radar scanner to RIN box
• Connectors included
Note: Cat5 or fibre cable from RIN box to ARPA
Stations.
4G CW radar OPTION
• 500mm radar dome
• Built-in transceiver
• Power: 24VDC, 30W
Note: for close range detection and tracking. Can replace one X-Band, or integrated as additional radar.
POSITION SENSORS
Kongsberg SeaPos 320
• 50 channel GPS receiver
• IALA / GNSS antenna
• RS422, RS232, USB and Ethernet
Power: 12-32 VDC, 4W
Kongsberg AIS 300
• 12 channel GPS receiver
• VHF and GPS antenna
• RS422, RS232 and Ethernet
Power: 12-32 VDC, 30W
Sensor display
• Panel PC, Touch display
Process network interface For operation and indication of:
• Kongsberg SeaPos
• Kongsberg SeaNav
• Kongsberg AIS 300
Note: remote operation from radar/ECDIS display.
Sensor display might be located outside navigation console.
ECHO SOUNDER
Electronic Unit ESN200
• 5 x NMEA output (Depth, ALR/ALF)
• 3 x NMEA input (ACK)
• 1 x Relay Alarm output
• 1 x Isolated Aux output
• 1 x Isolated Aux input
• 2 x LAN IEC61162-450
50 KHz Transducer
• 40 meter cable
• Depth readings from 2 to 450 meters
– 200 KHz Transducer
• 40 meter cable
• Depth readings from 1.5 to 200 meters
Tank
• Single bottom steel hull
Note: remote operation from radar/ECDIS display.
DOPPLER SPEED LOG
Electronic Unit DL2
• 4 x NMEA output (VBW, VHW, VLW, MTW, ALR/ALF)
• 2 x NMEA input (ACK)
• 3 x Pulses output
• 2 x Pulses input
• 1 x Relay Alarm output
• 1 x Analogue speed output 0-10 V
• 1 x Analogue speed output 4-20 mA
• 2 x LAN IEC61162-450
Doppler transduce
• Speed over ground from 2m depth
• Speed through water up to 50 knots
• Seawater temperature sensor
• 40 meter cable
• 100 mm diameter
Ball Valve for STW Transducer
• Single bottom hull
• 100 mm diameter
• Suitable for steel hull
G Y R O A N D M A G N E T I C C O M P A S S
Master gyro compass
Microprocessor controlled digital gyrocompass system complete with automatic north-speed correction
• One single unit
• Insensitive to horizontal accelerations
• Self synchronising repeaters
• 20 serials line outputs (14 NMEA-0183 and 6 RS422)
• Position and speed input (NMEA-0183)
• Speed input (200 pulses/nm)
• Magnetic compass input
• Rate of turn output
• Status and alarm signals
Power: 230VAC / 24VDC 150W
Gyro control and display unit
Bearing repeater
• Location : Steering gear room
• Watertight (IP 56)
• Integrated dimmer
• Bulkhead mounting
• 158 x 155mm
Rudder Angle Indicator, wall mount for
steering gear room
Magnetic compass
• 180mm compass plate
• Fluxgate for interface to gyro system, including 4m cable and connection box
Overhead mounting bracket
• Mirror head
• 220VAC illumination with external dimmer
Spare magnetic compass
• 180mm compass plate
• Delivered in wooden transport and storage box
– One (1) Cassens & Plath Pelorus “Sea”
– Prismatic azimuth circle
– Kongsberg SeaNav GNSS THD Sensor
OPTION
Supports WAAS, EGNOS and MSAS satellite based augmentation systems.
W I N D S E N S O R
Vaisala WXT 536 weather sensor
• UV resistant plastic and aluminium
• Wind speed and direction sensor
• Air pressure sensor
• Air temperature and humidity sensor
• Rainfall sensor
• Heating
• Junction box with 2m cable
• Serial line output
Note: remote operation from radar/ECDIS display.
W E A T H E R F AX
Weather Fax FAX-30
• Black Box Navtex and Weather fax
• Navtex 490kHz and 518kHz
• Weatherfax 80-160kHz and 2-25MHz, 1.000 channels
• ECDIS interface
• Power 12-24VDC
• Note: remote operation from radar/ECDIS display.
G M D S S P A C K A G E
The General Radio system will provide maritime and aeronautical mobile communication for normal and distress situations.
The vessel will be equipped with a GMDSS radio installations complying with the functional requirements prescribed by SOLAS Chapter IV for sea area A4.
One (1) fixed VHF and one (1) portable VHF-AM for location in “emergency bridge” will be used for short distance communication, whereas the Iridium Telephone System with pole-to-pole coverage is used for long distance communication. Convention is published by IMO, and SOLAS Chapter IV refers to the Radio Communications for all vessels at sea. GMDSS consists of several systems which are intended to perform alerting, search and rescue coordination, locating, maritime safety information broadcasts, general communication, and bridge-to-bridge communication in order to increase safety and make it easier to rescue distressed ships, boats and aircrafts.
GMDSS – Inmarsat C
The GMDSS radio installation will be equipped with Inmarsat-C Mobile Earth Station. It provides two-way data, fax and e-mail transfer to destinations worldwide. All functions and services of the Inmarsat-C system are provided including reception of broadcasted maritime safety information, and data- and position reporting to multiple destinations and time intervals. The earth station with SSAS (Ship Security Alert System) facility is intended for transmitting the security alert when the ship is under attack by pirates, terrorists, etc
GMDSS – MF/HF
The GMDSS radio installation will be equipped with MF/HF Radiotelephone which fully meets GMDSS carriage requirements. The MF/HF Radiotelephone will provide DSC (Digital Selective Call) on general communications and DSC Watch Receiver on all distress and safety frequencies in the MF and HF band.
DSC channels can be individually set or all selected channels can be automatically scanned. The radiotelephone maintains a continuous watch on distress call even while you are exchanging normal voice messages.
GMDSS – VHF
The GMDSS radio installation will be equipped with Marine VHF Radiotelephones. These are high quality, all-in-one marine VHF radiotelephones designed to comply with the GMDSS carriage requirements for safety and general communications. All the necessary functions such as VHF radiotelephone, a Class A DSC modem, instant access to CH16 and Dual Watch function are incorporated into the transceiver unit. Each VHF radio station will consist of two antennas, a transceiver unit and a handset.
GMDSS – Navtex
The Navtex onboard the vessel is designed for SOLAS ships complying with the Navtex performance standard stated by IMO. A tri-channel NAV7 Navtex receiver, which enhances the navigation efficiency and safety by watching Navtex messages broadcasted on both international and local channels, will be provided. These messages include a variety of safety information such as navigational warnings, meteorological warnings, search and rescue information and other information for ships sailing within the reach of each service station’s coverage. The Navtex will consist of an antenna unit, a receiver, and a display unit.
GMDSS – Emergency Transmitters and Beacons
The vessel will be equipped with EPIRBs (Emergency Position-Indicating Radio Beacons), one float free and one manual, which will start transmitting vessel identity and positioning signals to the COSPAS/SARSAT satellites when activated. The signals will be transferred to the right control centre which co-ordinate the rescue operation. The vessel will also be equipped with two SARTs (Search and Rescue Radar Transponders), which gives the exact location of the distressed vessel indicated on the X-band radar display of any nearby ship, SAR vessels and aircrafts.
GMDSS – Portable VHF
The portable GMDSS VHFs onboard the vessel are to be used in emergency situations and are designed to cope with the toughest marine environments.
The vessel will be equipped with portable GMDSS VHFs, which are waterproof and delivered with Lithium battery and wrist strap.
Sailor 6222 VHF radio with DSC
• Transceiver unit with handset
• Two (2) antennas
• 2x30m cable
Sailor 6204 VHF slave units with DSC
• For flybridge and port and bridge wings
Sailor 6300 MF/HF Radio
• Control unit with handset
• Transceiver 150W
• Antenna Tuning Unit
• Antenna Tx AT82
• Antenna Rx AR82
• 2x20m cable
Sailor 6110 Inmarsat-C
• Antenna and transceiver unit
• Message terminal with
• distress button
• battery and charger monitoring
• Keyboard
SSAS Kit
• control unit
• Test button
• Two (2) alarm buttons
LRIT control unit
Alarm Panel
• VHF & MF/HF Distress
• Conning position
Power Supply
• Power supply 230VAC/24VDC with auto change-over
• Battery charger
• Power distribution
