Bluegame
BGX60 / BGX63 #22

HULL DECK CONSTRUCTION
Molded fiberglass construction made with iso-neophentilic gel coat 1,5 mm surface, skin coat of vinylester resin
Hull bottom in monolithic lamination made with biaxial, mquadriaxial glass, and ISO DCPD polyester resin
Sandwich core construction on side hull and deck plans Sandwich structural bulkheads
Deck and coach roof in sandwich with vinylester resin Hull, deck and coachroof painted (RAL ref. 9018)
Hard top, struts and lower deck beach area roof painted (RAL ref. 7043)
Antifouling on hull

UPPER DECK
Deck made in sandwich and infusion technology with vinylester resin
Twin fiberglass doors covering bow mooring system Anchor 30 kg S/S
Bow roller custom design S/S Galvanized chain 12 mm 100 m Anchor safety cable
Electric anchor winch 2.000 W Electric mooring winch 1.000 W N° 2 S/S fairleads
N° 2 S/S cleats
N° 2 retractable cleats at mid-ship Fresh water outlet connection Teak deck
Access to crew cabin at the bow Sun pad area with back rest
Portside entrance from the dock
Storage
Navigation and anchor lights led system Courtesy light on walkaround Dimmable ceiling lights
Double diesel inlet Fresh water inlet
Black water tank drain pump Grey water tank drain pump Horn
Radar radome GPS antennas VHF antennas
N° 2 speakers in bow area connected to the deckhouse area
N° 2 speakers in stern area connected to the deckhouse area
Upper deck sliding glass door Portside manual pantograph door
L-shape sofa on stern with teak table Glass skylight on portside
Sun roof ladder with manual hatch Sun roof handrails
Sun deck with antiskid floor Digital TV antenna

BEACH AREA
N° 2 speakers and subwoofer connected to the saloon area Side 180° crane with 500 kg lifting capacity

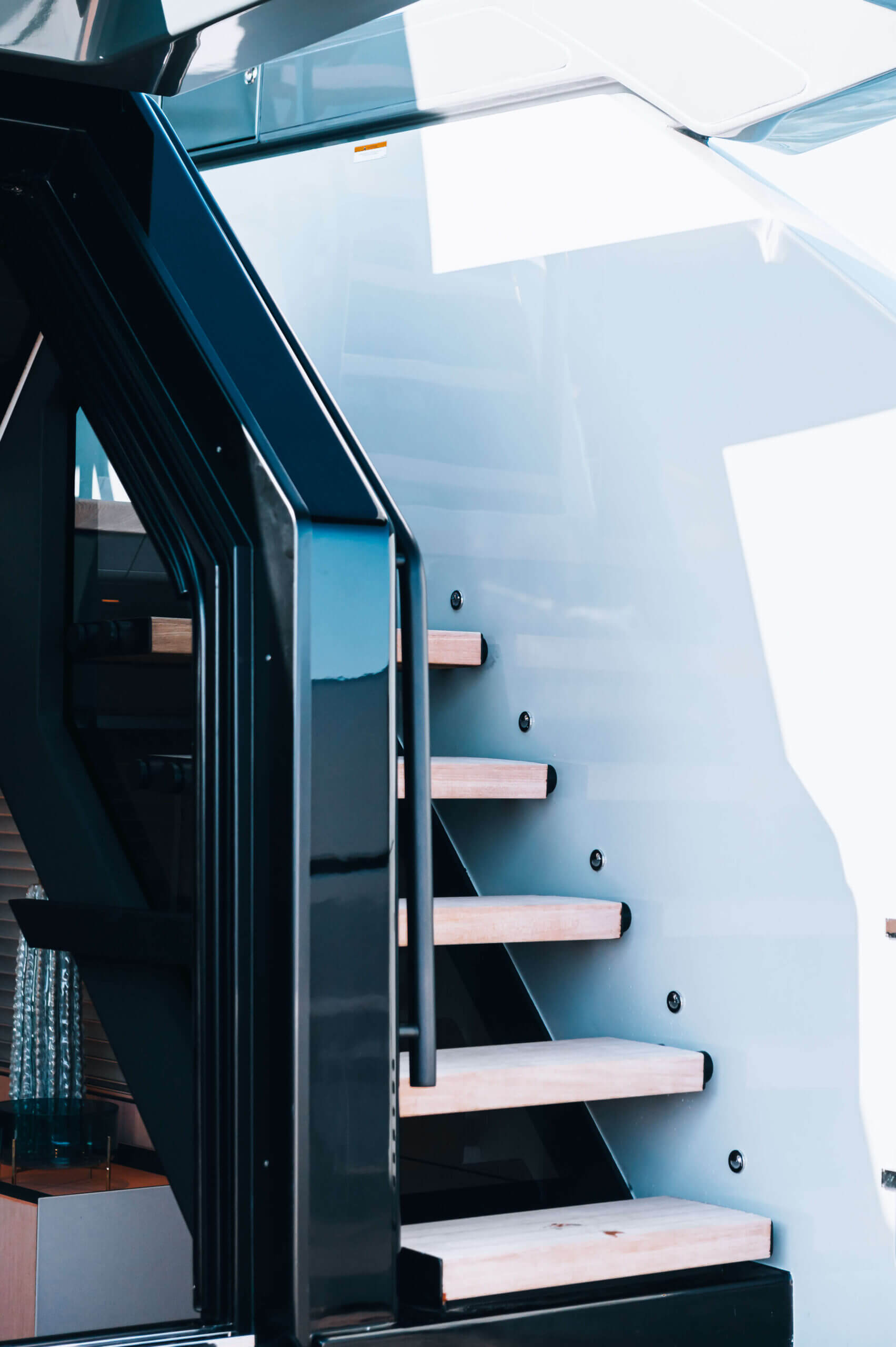

Sliding door to main saloon Teak stairs to upper deck Retractable up/down gangway
Electrical engine room big hatch for maintenance Manual engine room access
N° 2 stern mooring winches 1000 W N° 2 steel cleats 300 mm
Hot/cold shower Teak deck
Side storage compartments Floor storage compartments Courtesy lights
Dimmable ceiling lights N° 2 glass skylights

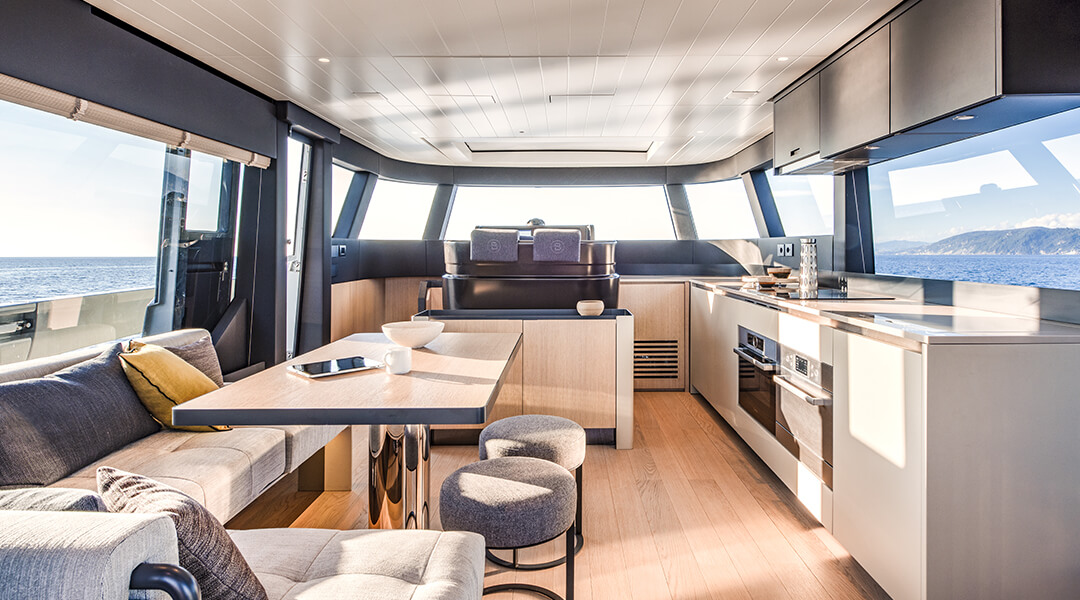

DECKHOUSE
Sliding glass door with curtain
Stairs from main saloon with handrail Stairs to guest’s area with handrail Side tempered glass
Wooden floor
Wooden venetian blinds Courtesy light Dimmable ceiling lights

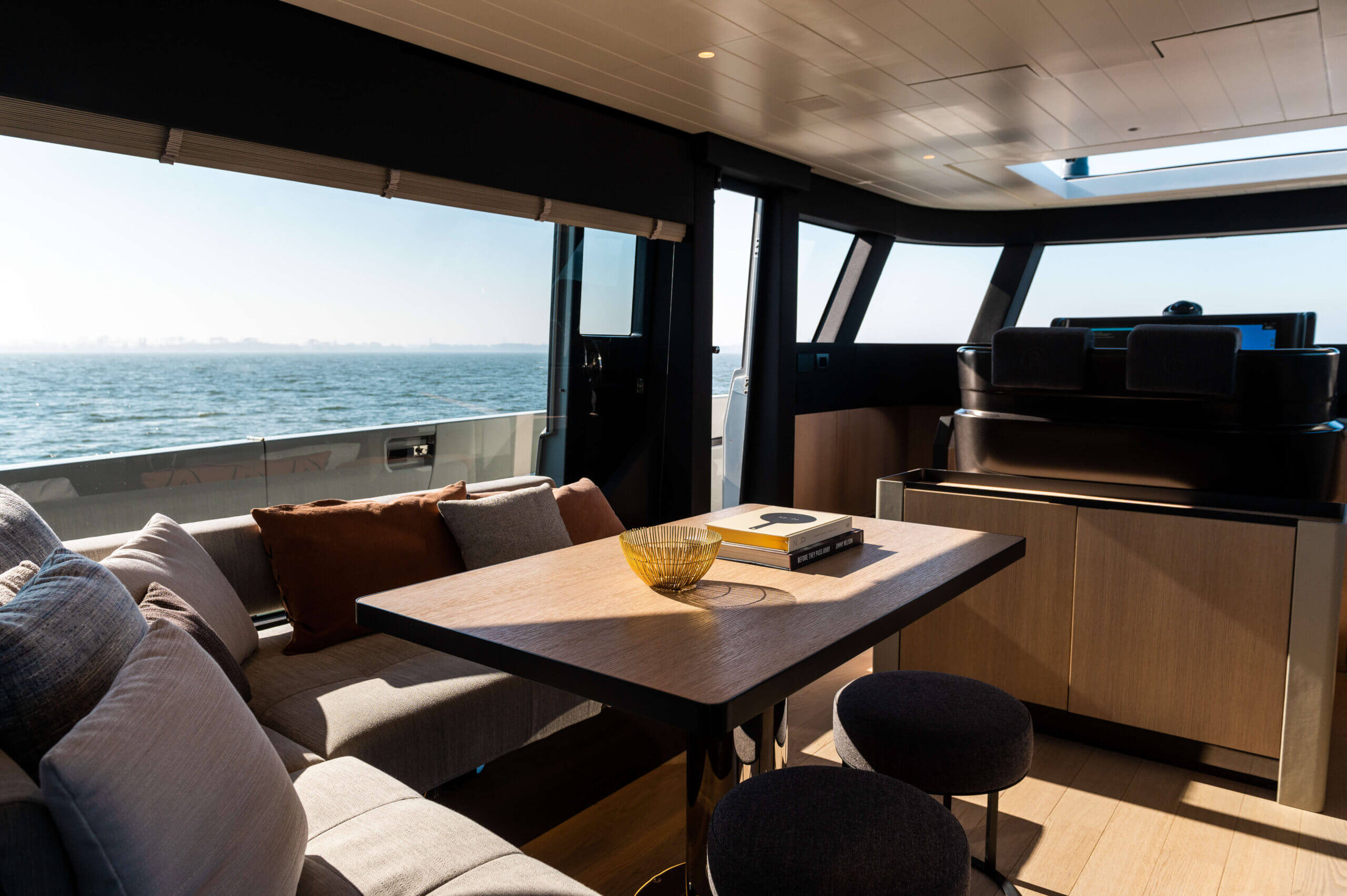

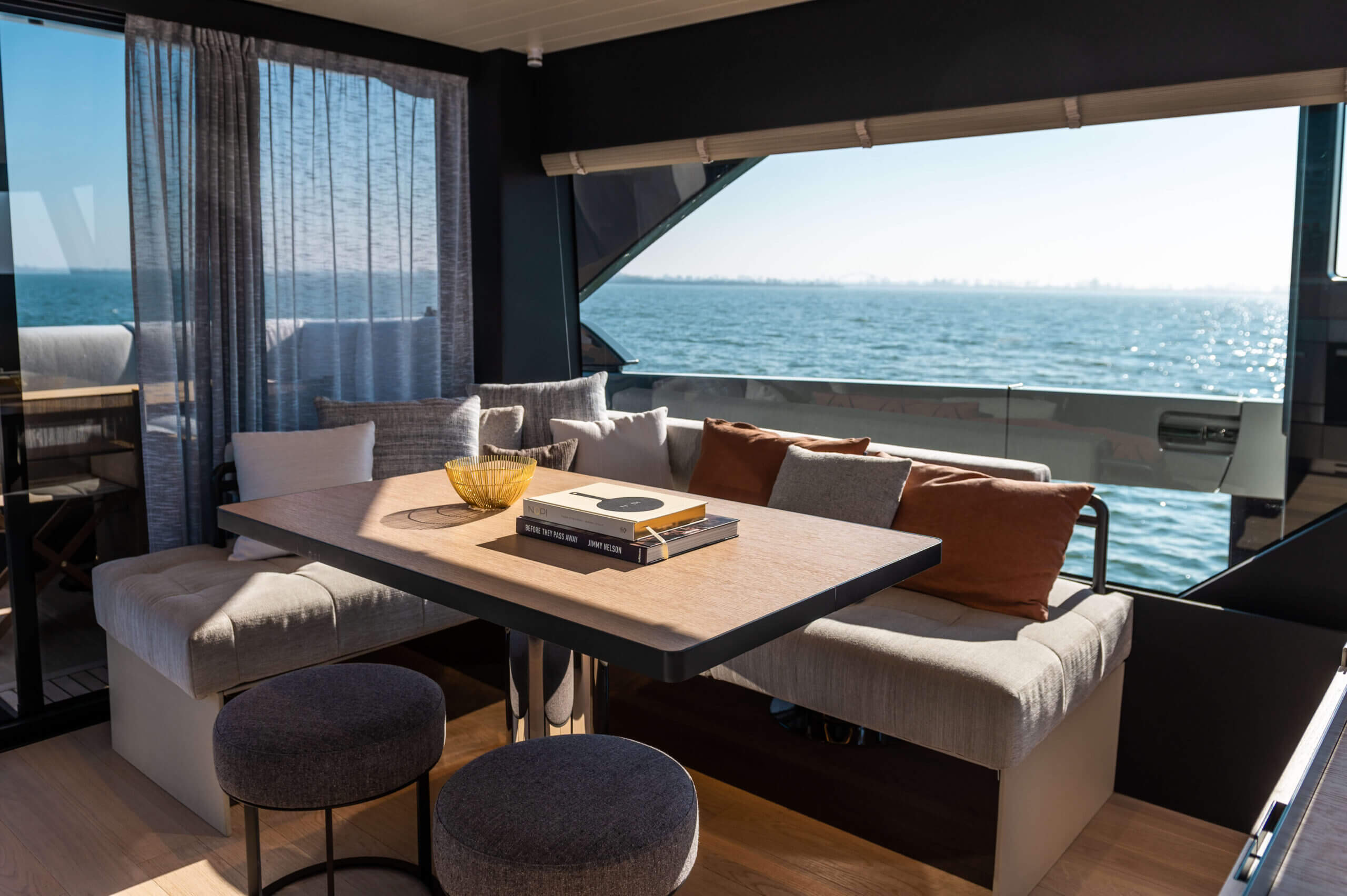

L – shape sofa with table and 2 stools Double bench
Storages below the pilot seat Air conditioning fan coils

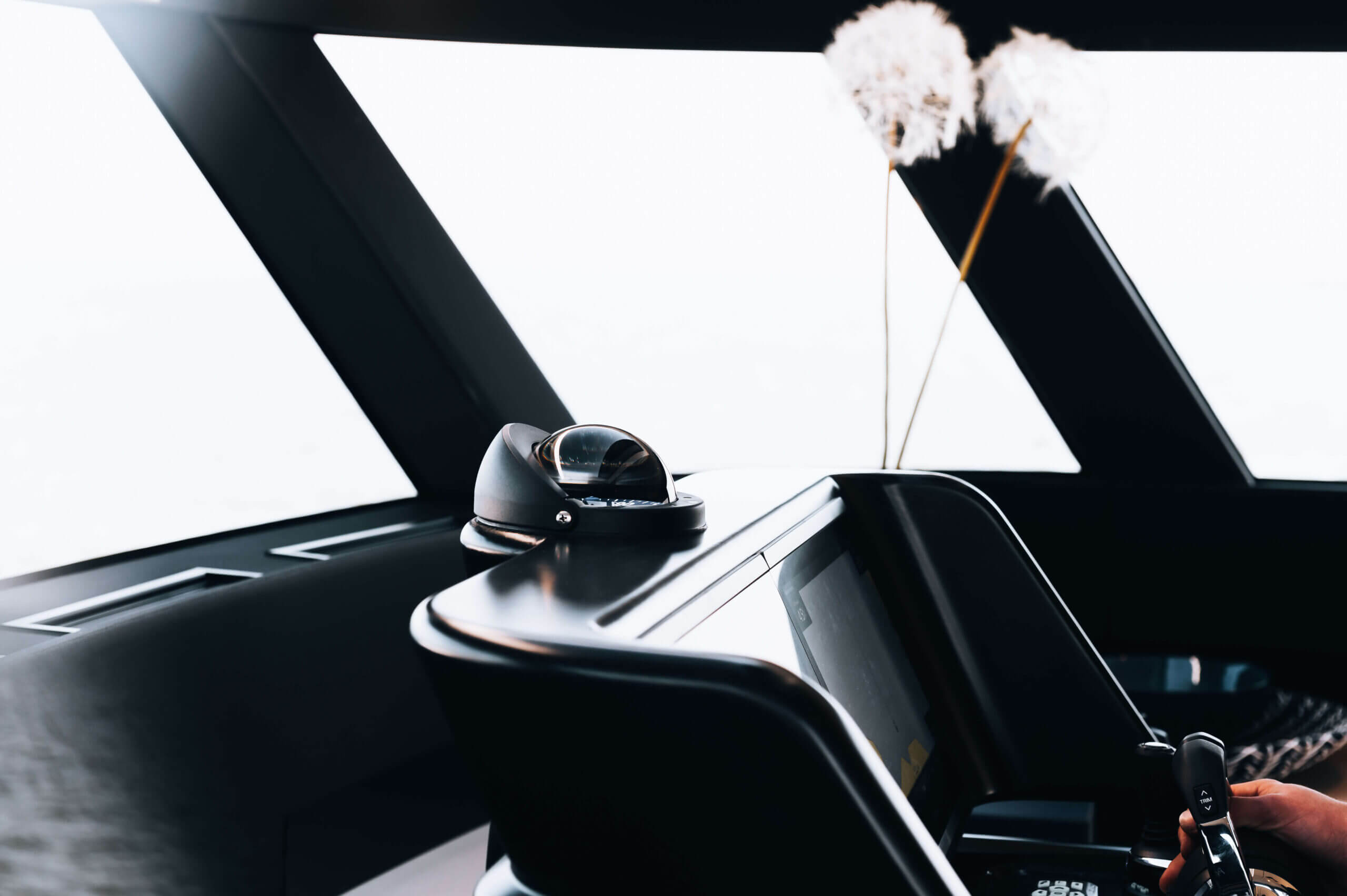

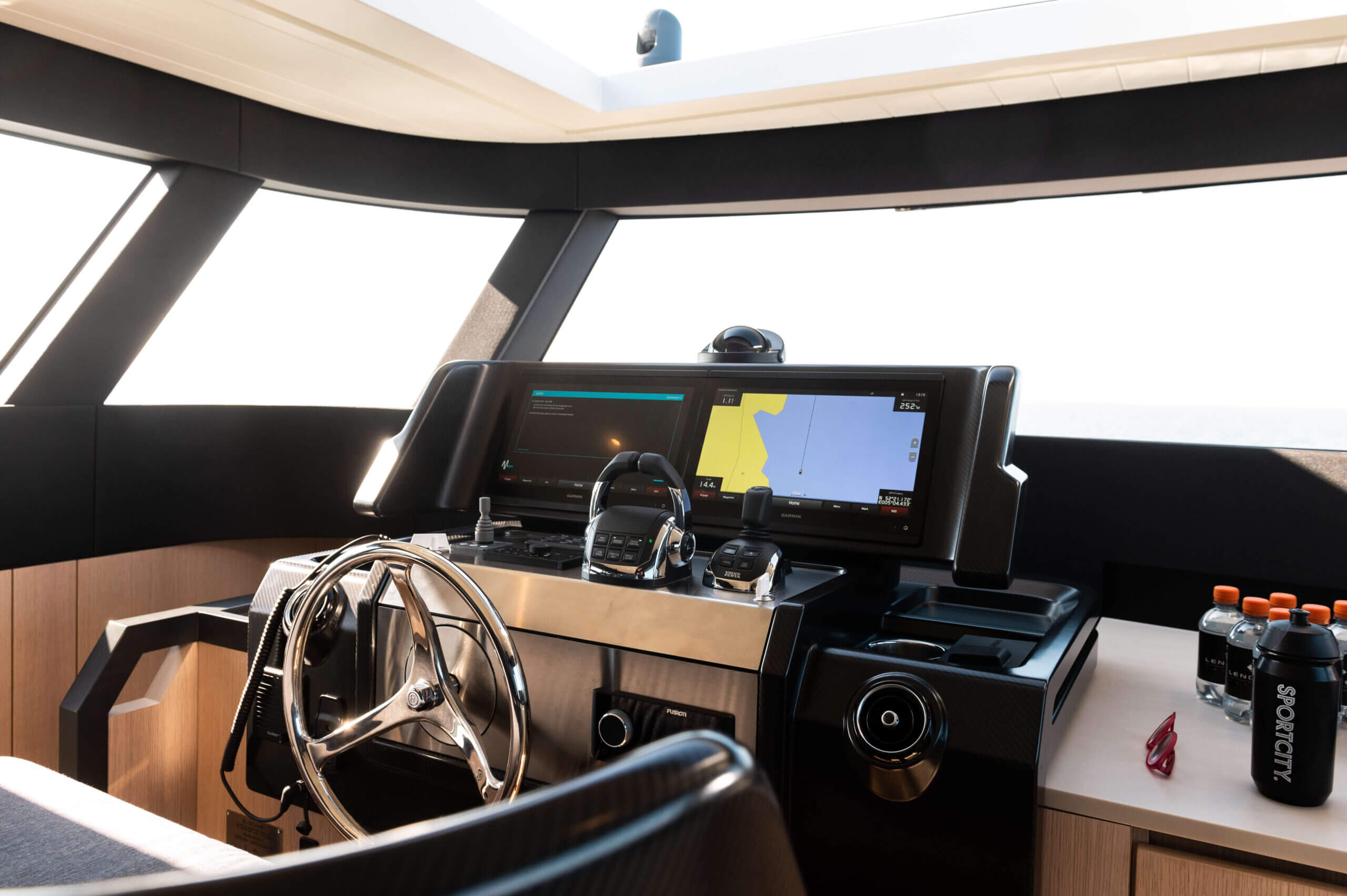

Fire extinguisher 1 kg Smoke detector Console with:
Hi-Fi Compass
N° 2 12” chart plotter glass cockpit indicating engines parameters (rpm, oil pressure, water temperature, engine sound warning alarm, fuel and water level) and controls (intruder systems, windshield wiper, GPS, radar, fish-finder)
Volvo Penta automatic pilot
VHF station with passive AIS receiver IPS joystick
Volvo Penta electronic engine throttle
Digital switching and digital automation for main services DC and AC integrated in main panel
Back-lighted switch panel for deck services Bluegame personalized steering wheel
Fire fighting system control Red navigation light control
Port side manual pantograph door USB socket

GALLEY
Lacquered overhead cabinet
Lacquered lower cabinet with storage Sink with cover
Synthetic worktop
Four zone induction cooktop Oven
Refrigerator Freezer Kitchen hood
220 V & USB sockets
Trash compartment
Air conditioning fan coil Fire extinguisher 1 kg

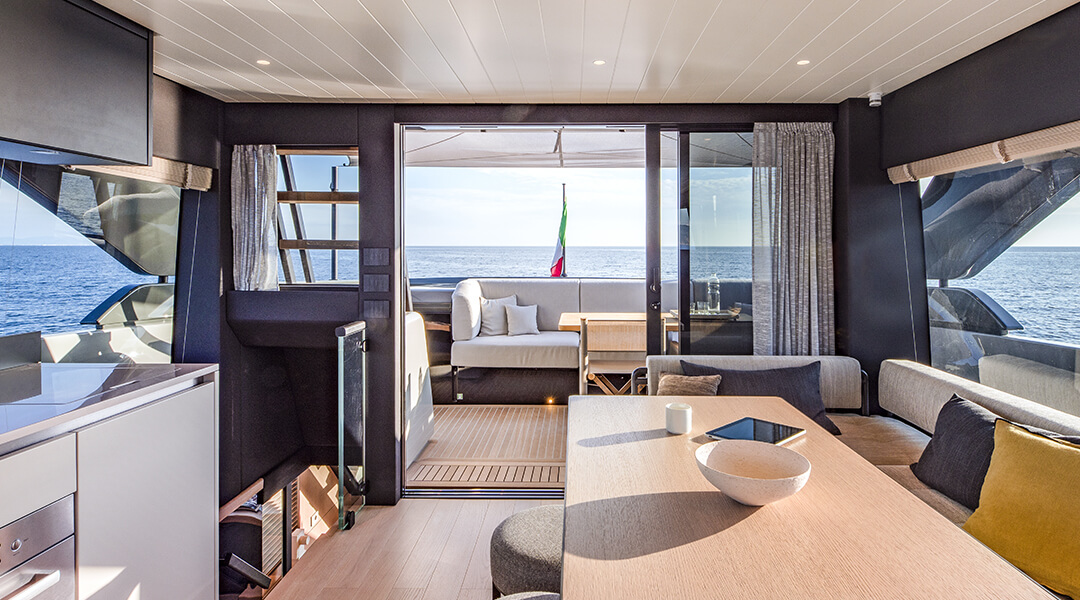

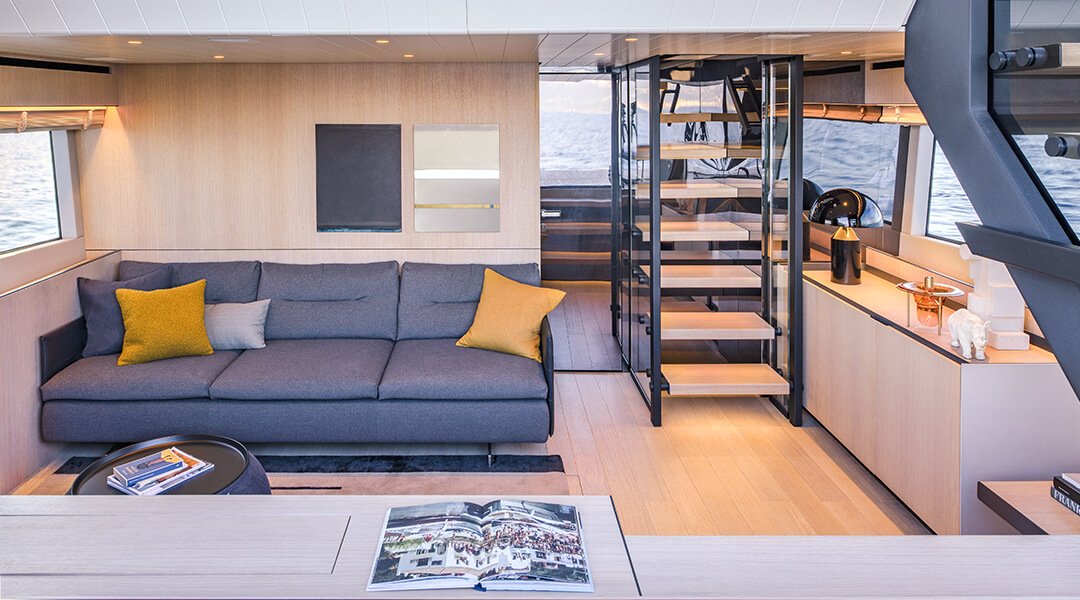

LOWER DECK SALOON

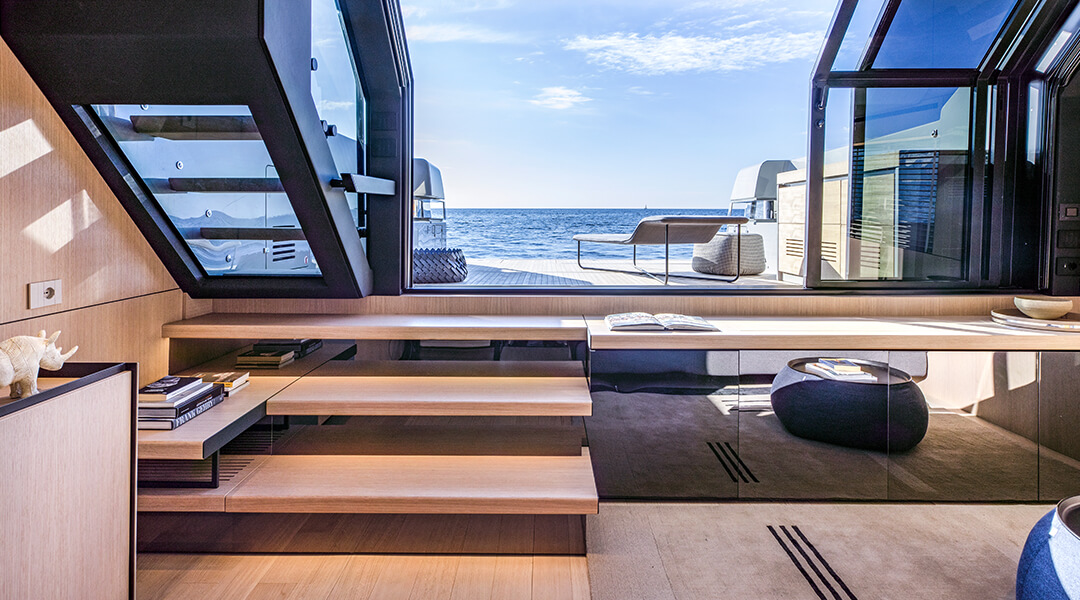

Sliding door to beach area with electric curtain Steps from beach area to saloon with handrail
220 V & USB sockets Sofa
N° 1 coffee table Storage cabinet Wooden floor Carpet
Wooden venetian blinds Side tempered glass
50” TV
Owner cabin entrance Hi-Fi
N° 4 speakers
Air conditioning fan coils Floor hatch to technical area Smoke detector
Fire extinguishers 1 kg

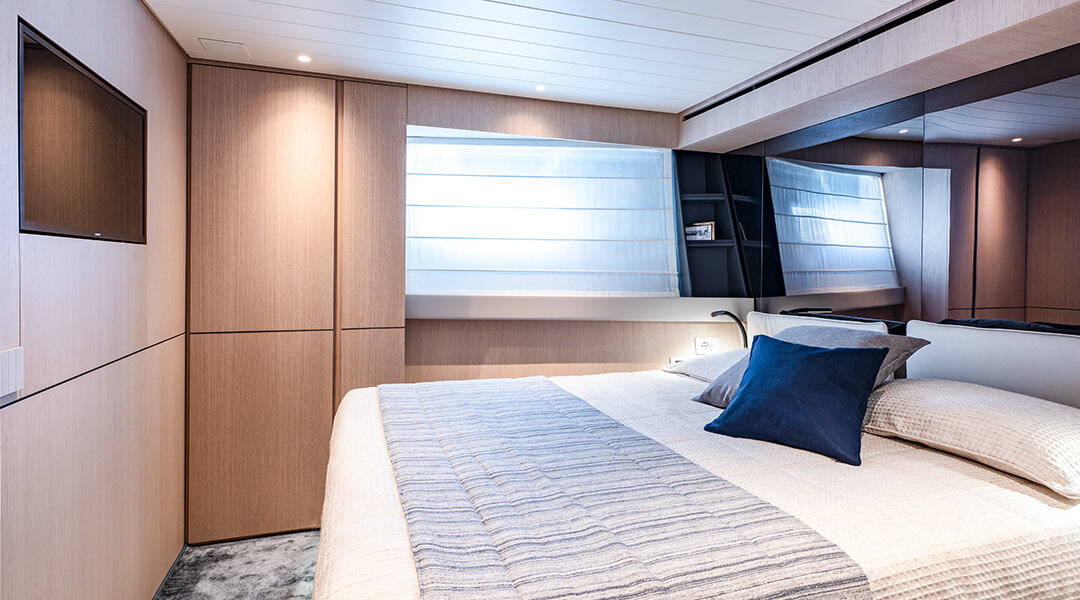

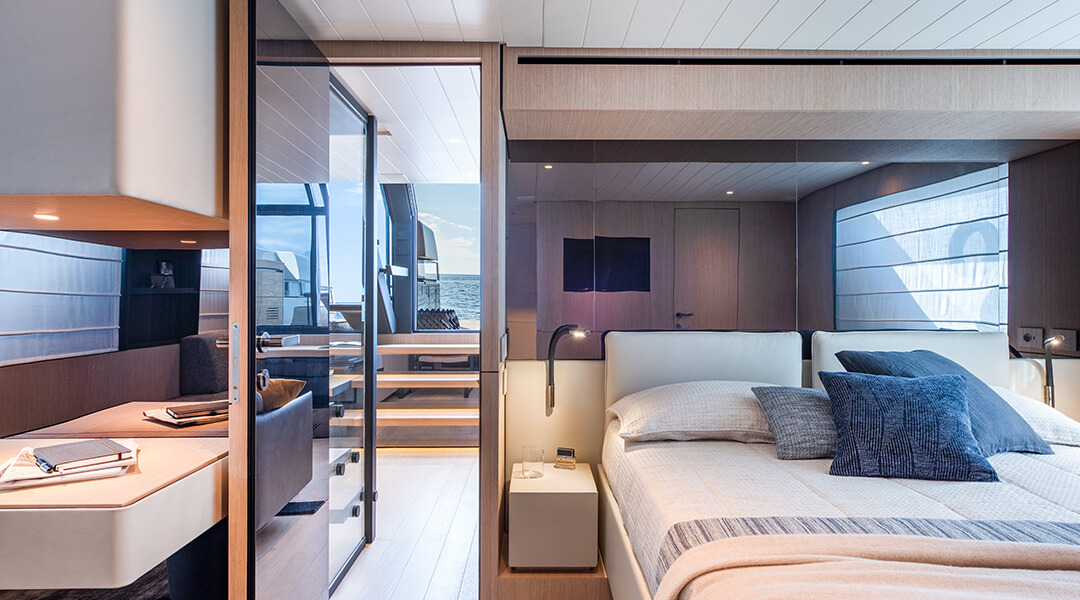

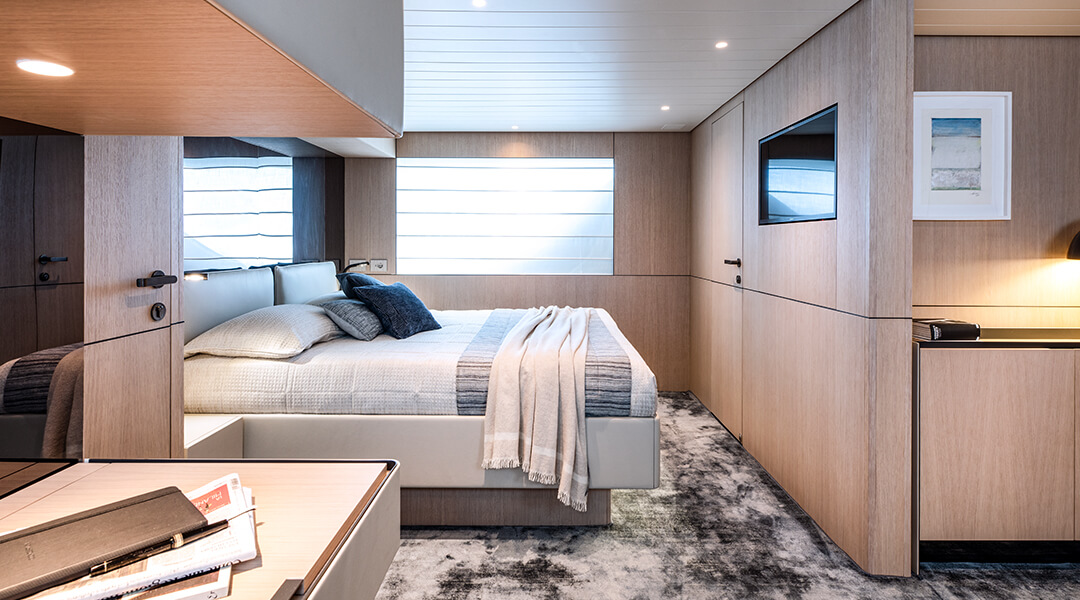

OWNER CABIN
Double bed with memory foam mattress Storage cabinet
Nightstands Sofa
N° 1 coffee table Carpet floor Reading lights Ceiling lights Courtesy lights
220 V & USB sockets
Side tempered glasses with integrated porthole Roller blind

Decorative curtains
Pillows
Bed sheet cover Bed sheets
Safe 32” TV
Hi-Fi
N° 2 speakers
Vanity desk with n.1 stool Walk-in-wardrobe
Air conditioning fan coil Smoke detector
Fire extinguisher 1 kg

OWNER BATHROOM
Fresh water electric marine WC Bidet
Hydro-brush for WC
Wooden floor Ceiling lights Roller Blind
Decorative curtains 220 V socket Bathroom accessories Bathroom towels Cabinet with mirror Porthole
Synthetic surface with sink
Shower with handset, ceiling shower head and tempered glass door

VIP CABIN
Double bed with memory foam mattress Storage cabinet
Nightstands Wardrobe Carpet floor Reading lights Ceiling lights Courtesy lights
220 V socket
Porthole
Roller blind Decorative curtains
Pillows Bed sheets
Bed sheet cover
32” TV
Hi-Fi
N° 2 speakers
Air conditioning fan coil Smoke detector
Fire extinguisher 1 kg

VIP BATHROOM
Fresh water electric marine WC
Hydro-brush for WC
Wooden floor
Ceiling lights Roller blind
220 V socket Bathroom accessories Bathroom towels Cabinet with mirror Porthole
Synthetic surface with sink
Shower with handset and tempered glass door

LOBBY
Storage area
Teak stairs from deckhouse to lower deck with handrail Courtesy lights
Floor hatch to storage area

CREW CABIN
Storage cabinet Reading lights Ceiling lights Porthole Synthetic floor
Pillow
Bed sheets
Bed sheets cover 220 V & USB sockets
Air conditioning fan coil
Separate bathroom with:
Fresh water electric Marine WC Teak floor
Ceiling lights 220 V socket
Bathroom accessories Storage cabinet Porthole
Shower
Sink
Smoke detector
Fire extinguisher 1kg

ENGINE ROOM
2 x Volvo IPS 1050 D13 / 2 x 588 kW / 800 HP
3.000 l fuel structural tank in composite with fuel level sender connected with EVC Volvo system 7
Electric valves for fuel interception Double water/fuel filter separator
Fire extinguisher system with manual and automatic control
Engine room led lights A/C chiller unit 60.000 BTU Engine room insulation
N° 2 electrical ventilators with cycle reversion and thermostat switch
Air inlet with water separator filters Watertight power sockets
N° 2 sea water filter
S/S engine room access ladder Intruder trim system

ELECTRICAL SYSTEMS
Generator 18 kW 220 V
N° 1 generator AGM battery 110 Ah / 12 V N° 4 engines AGM batteries 130 Ah / 12 V N° 8 service GEL batteries 165 Ah / 12 V
Electromechanical battery switches with remote digital control
Services battery charger 100 Ah Engines battery charger 30 Ah Generator battery charger 15 Ah Inverter 3.000 W
230 V shore power 63 Ah with connection cable 15 m 63 Ah galvanic insulation
Toroidal transformer 15 kVA
AC electrical panel (230 V AC) CE certified in engine room with electromechanical switching for all outlet with remote control on main panel
DC electrical panel (24 V DC) CE certified in engine room with electromechanical switching for all outlet with remote control on main panel

HYDRAULIC SYSTEM
Fresh water PE tank 700 l with sender connected with EVC Volvo system
N° 2 waterheater 45 l (220 V)
Black water tank 330 l with sender connected with EVC Volvo system
Gray water tank 330 l with sender connected with EVC Volvo system
Shore black water discharge system
Shore grey water and bilge discharge system Double fresh water autoclave pumps 24 / 230 V Black water hoses in special anti smell rubber Shore high pressure fresh water inlet
Five bilge pumps; one in engine room, two in stern area and two in center hull, with automatic and manual control
Salt water system for anchor chain wash

Configuration:

Functionality
Gyroscope Sea Keeper 9
Proportional bow thruster 170 kgf
Underwater Lights (N.2)
Supply and installation of tender chocks in beach area

Decoration
3 Cabins / 3 toilets Layout

Electronics
Wi-Fi system + 2 repeaters
N.2 Volvo glass cockpit 16” (diff. from 12” STD)
AIS system for Garmin AIS Rx/Tx

Comfort
Tropical A/C 72.000 BTU
Wet bar in beach area equipped with basin, fridge, storage and trash bin
Electric teppanyaki in wet bar
Up-Down TV movement in LD salon
Winecooler in LD saloon
Bow sunlounge bimini with carbon poles
Stern sunlounge bimini with carbon poles

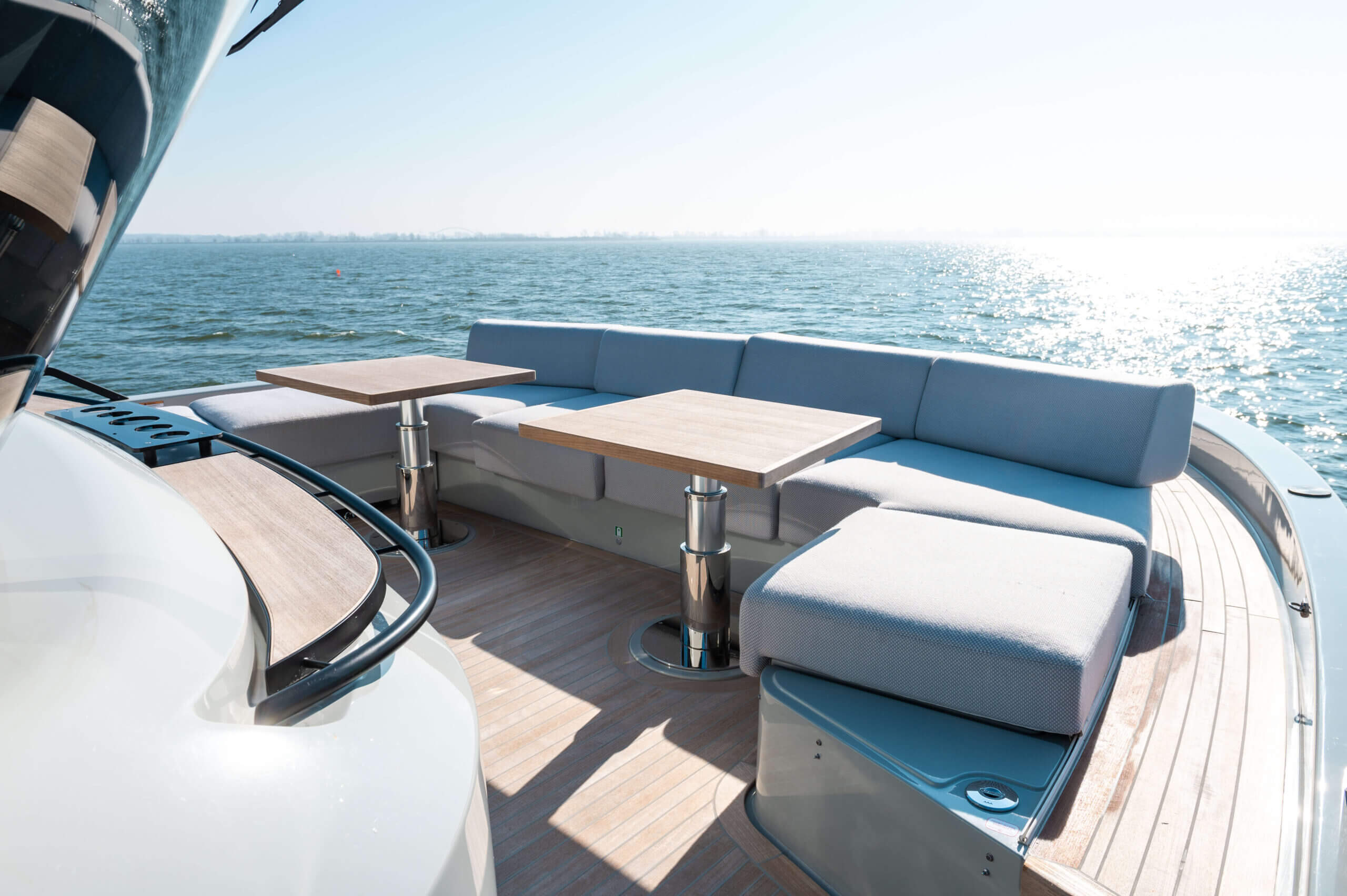

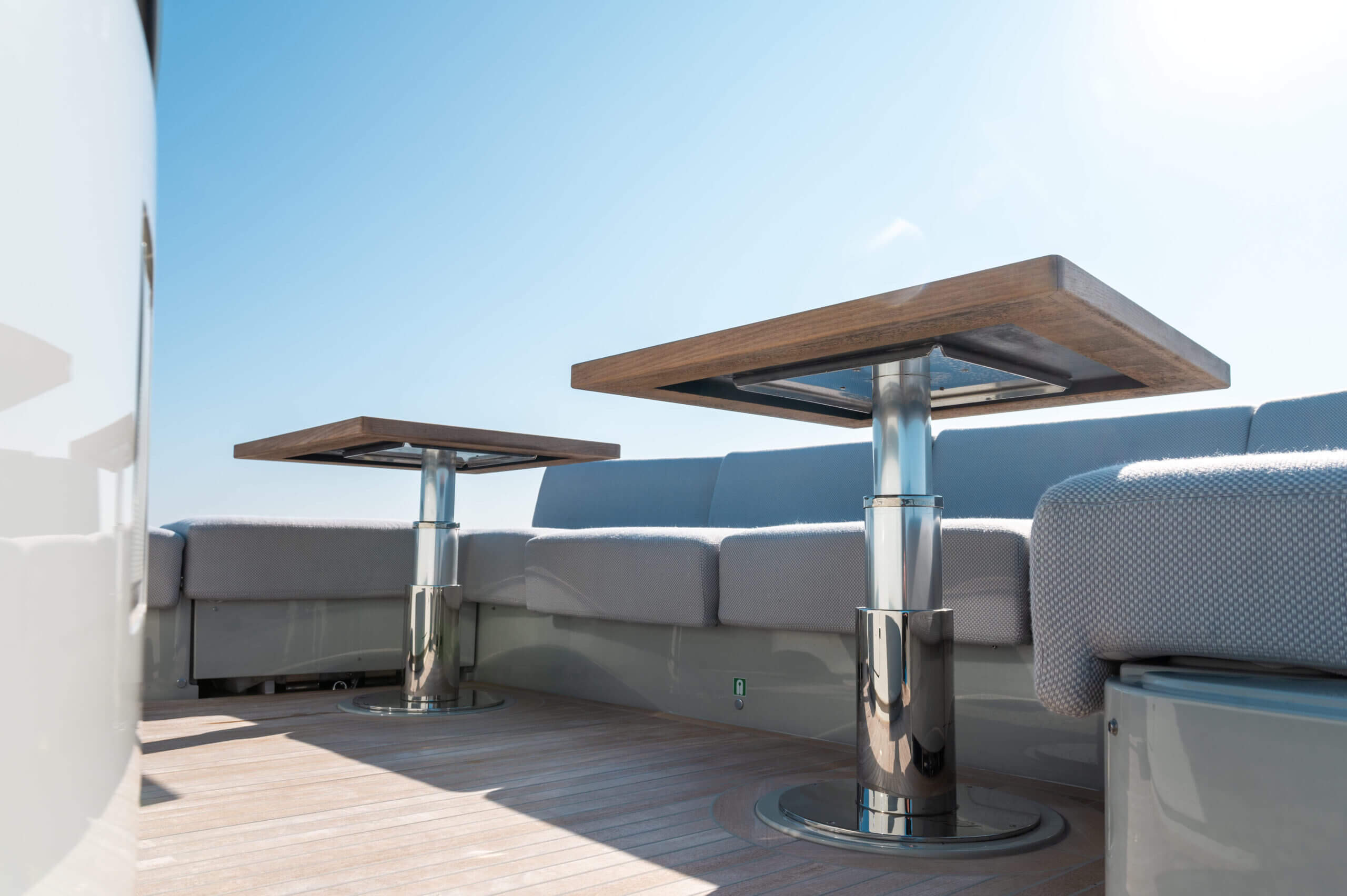

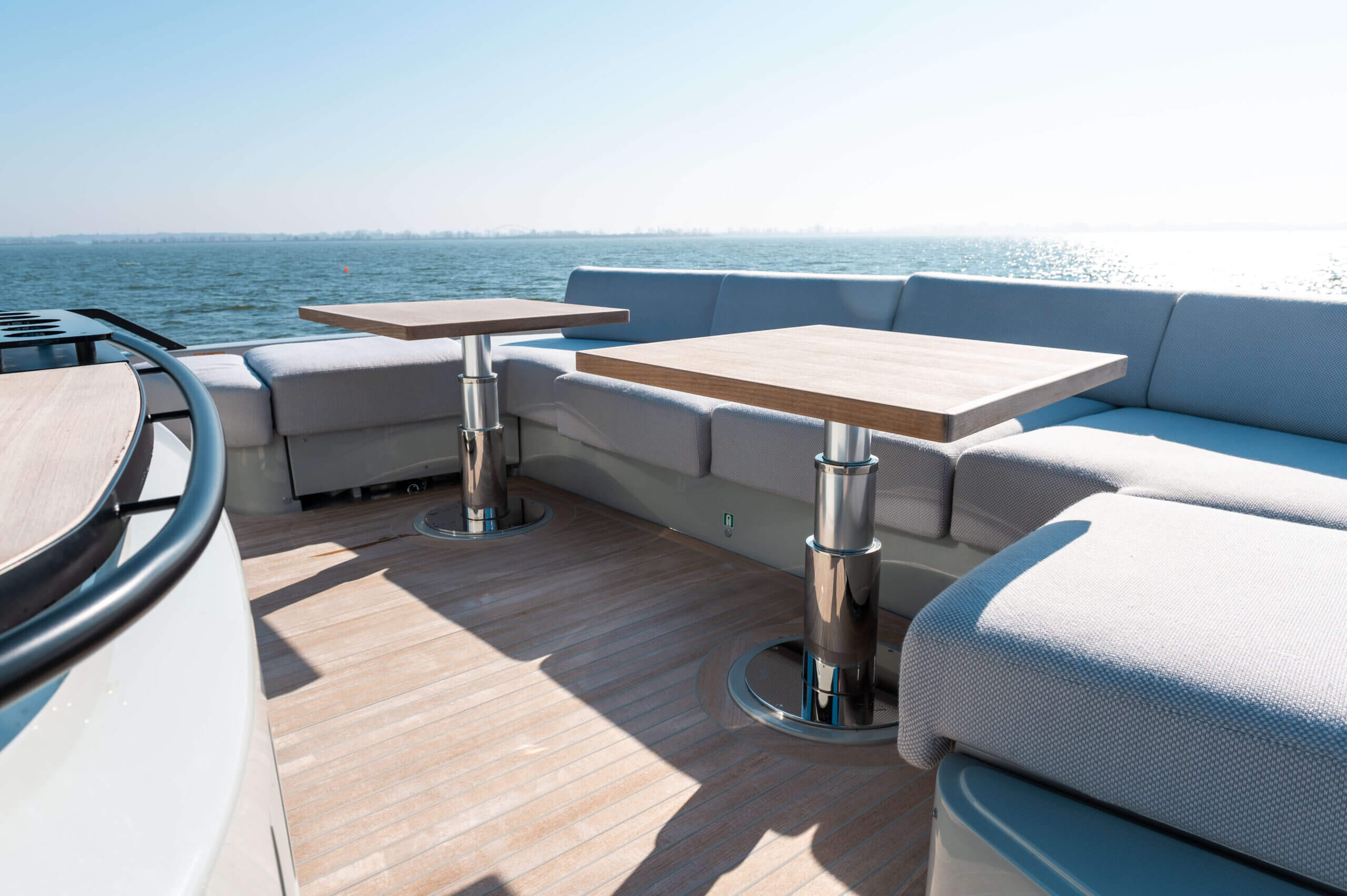

Bow area tables with electric up/down system with cushions for sunbed
extension
Watermaker unit 130 Lt /h (N.2)
Dishwasher (set of 6 plates)
Washer-dryer BOSCH
Wc and integrated bidet in owner bathroom (instead of wc + bidet)

Service
Seajet antifouling on IPS
Set of fender covers and rope covers

Custom
N.2 additional underwater Lights (so in total N.4)
3rd bimini
Smart TV’s (including pre installation and wiring) in all cabins
Aft platform with hydraulic lifter system for launching tender on portside and
pantograph steps on the starboard side
Installation of an additional generator (Whisper Power)
Control of the watermaker to be placed in the helm station
Up/down table + cushion in the UD salon
Additional chain length 25m
Door between the owner’s cabin and the third cabin
Teak on top of the wetbar
Replace the standard sink in the owner’s bathroom with a larger sink positioned in the middle
Install the wc in the middle between the bulkhead and the sink (owner’s bathroom)
Compressor in the engine room with connection in the beach area for
the fenders
2 x electric socket exterior beach areaModification of the third cabin:
– eliminate door connecting the cabin with day bathroom
– eliminate single suspended bed
+ insertion of double bed (with dimensions 1400x1900mm)
+ insertion of additional storage suspended against owner cabin bulkhead
(dimensions approx. 1400x300mm)
+ additional storage at full height (approx. 300mmx280mm)
Invert direction opening of the small hatch for access to engine room
(reversing the opening direction of the manhole for access to the machine
room)

Soft Decor

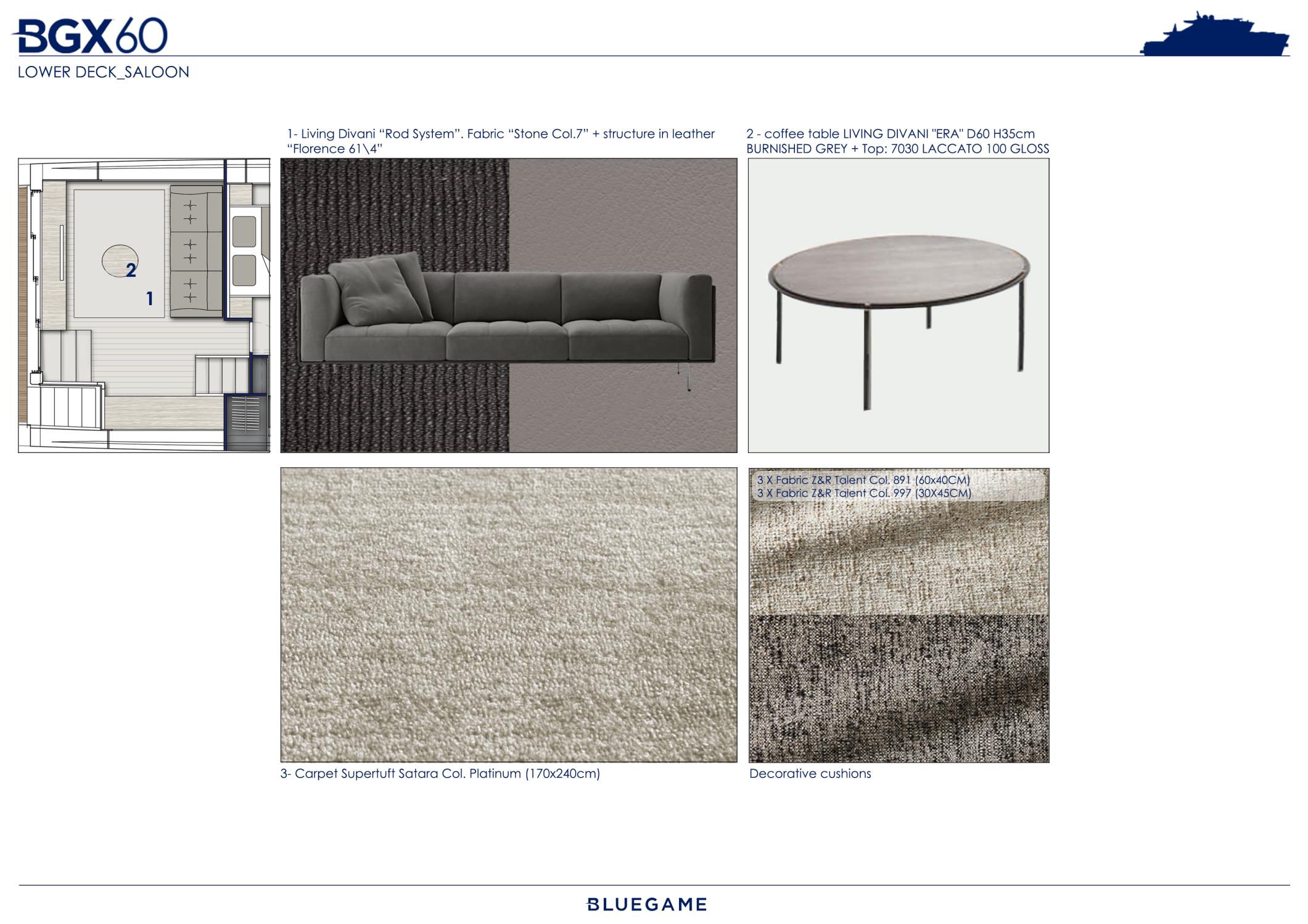

Lower deck saloon:
Sofa L 240 Living Divani Rod System Stone 07
Structure: Leather “Florence” 61/4
N°3 Dec.cushions 30 X 45 Zimmer&Rohde Talent 997
N°3 Dec.cushions 60 X 40 Zimmer&Rohde Talent 995
Carpet 170 X 240 Supertuft Satara Platinum
Coffee Table D 60 H 35 Living Divani Era Base: Col. Burnished Grey /
Top: 7039 Lacquered 100 Gloss

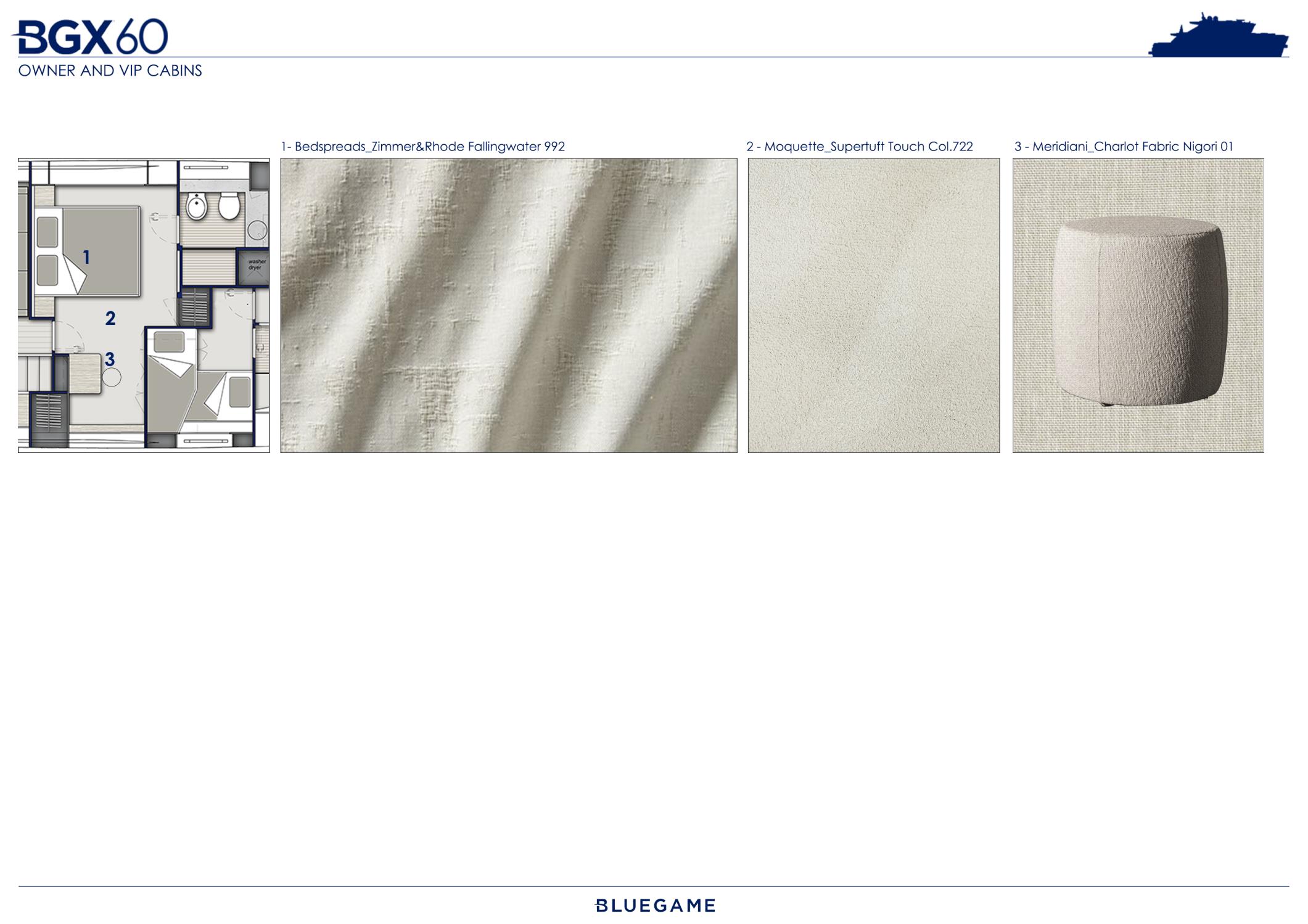

Owner/Vip/Guest Cabin:
Bedspreads Zimmer&Rohde Fallingwater 992
Moquette Supertuft Touch 722
BLUEGAME BGX60 #22
Owner Cabin:
Stool D 45 Meridiani Charlot Niguri 01

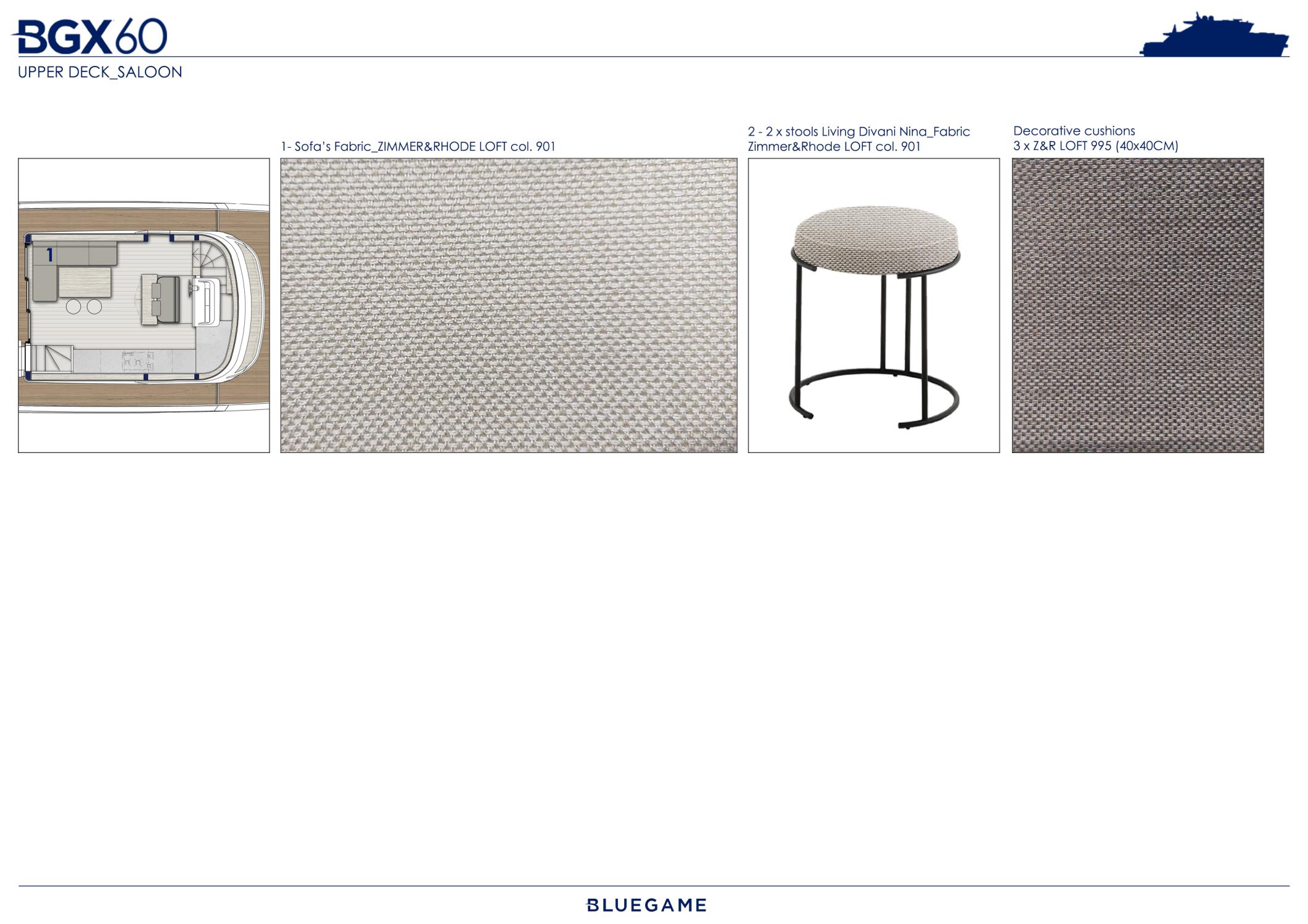

Upper Deck:
Sofa Fabric Arredo Lombardo Loft 901
N°2 Stool H 46 Living Divani Nina Loft 901 Tessuto Nostra
Fornitura: Zimmer&Rhode
N°3 Dec.cushions 40 X 40 Zimmer&Rhode Loft 995

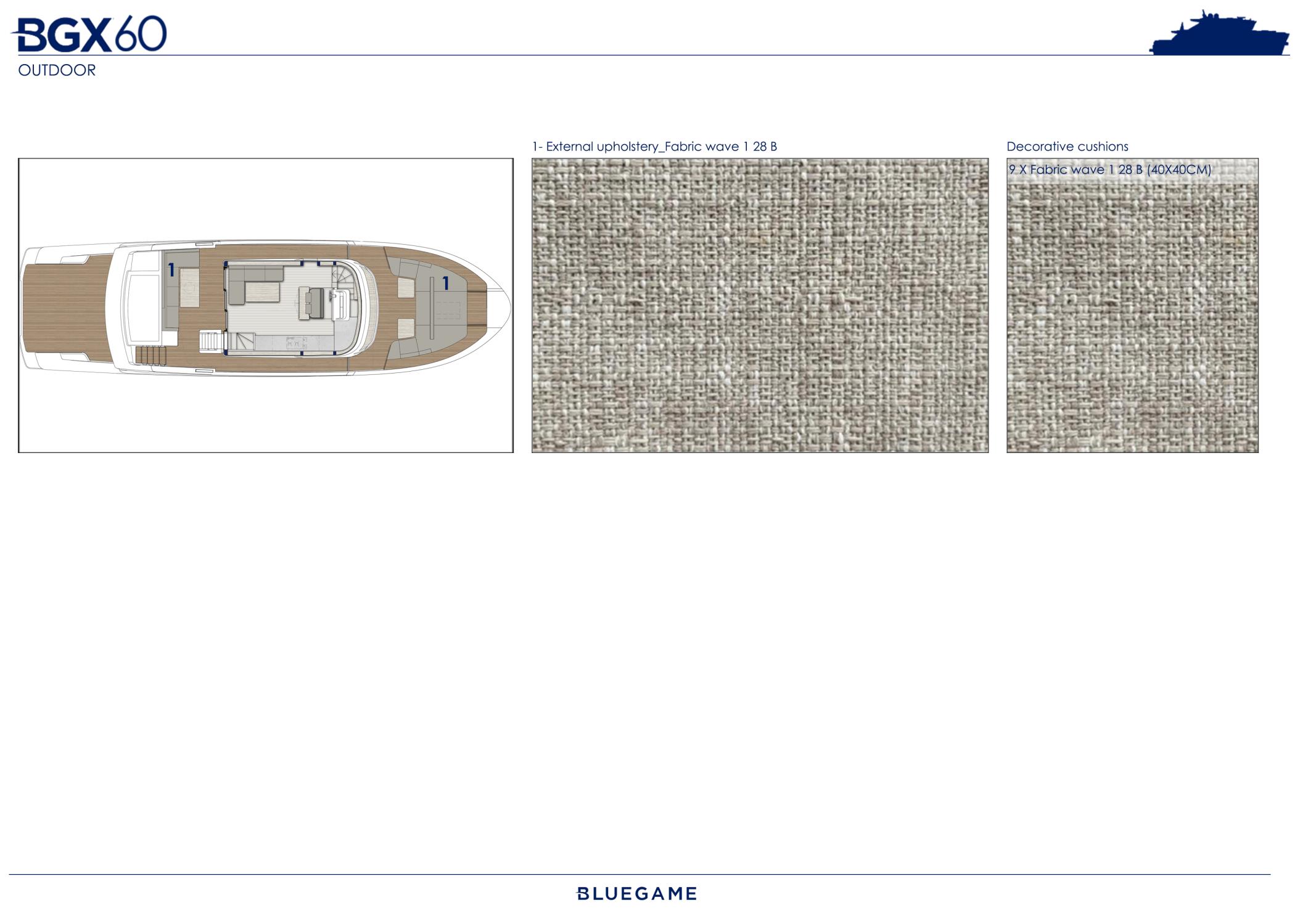

Outdoor:
External Upholstery Arredo Lombardo Wave 1 28 B
N°9 Dec.cushions 40 X 40 Arredo Lombardo Wave 1 28 B
